PureEdge Lighting
VGCE. VERGE CEILING WARM DIM 24VDC PLASTER-IN LED SYSTEM.
 Configure
 Add to project
DESCRIPTION

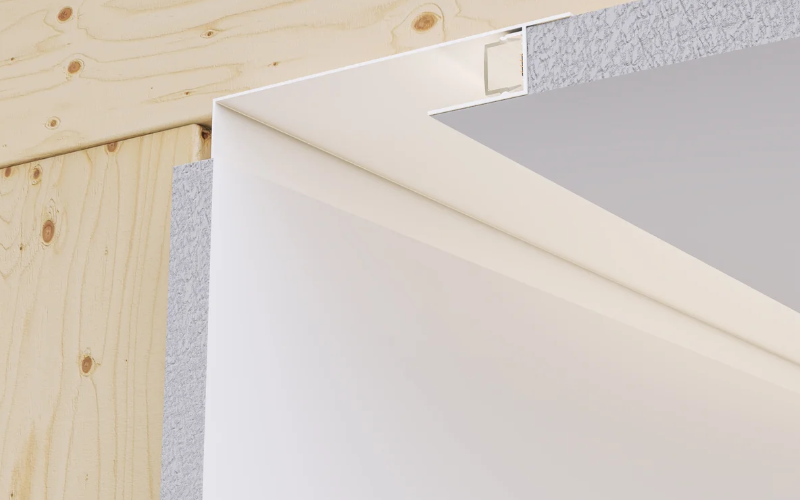

Verge Ceiling is another innovative design that comes from the family of plaster-in 24VDC systems pioneered by PureEdge that recesses within 5/8" drywall without joist modification. Continuing to redefine the relationship between lighting, architecture and interior design, this visionary system elegantly highlights ceiling perimeters while emitting smooth and continuous ambient illumination. Ordered in 1' field-cuttable increments up to 20'. The slim plaster-in aluminum extrusion has a 4" paintable backer plate. Warm Dim technology (27D & 30D) mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K, reminiscent of candlelight along the halogen curve. Click here for all Other Color Temperatures. Verge brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity, and empowering you to design One-of-a-kind spaces every time. Remote Power supplies are required and sold separately. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 5''
    L: Run length (Ft)
  • Light Source
    LED
  • CCT/Color
    2700K Dim to Warm3000K Dim to Warm
  • CRI
    94
  • Watt(Approx)
    184 W/Ft
  • Lumens(Approx)
    4.8 Lm/Ft
  • Optics
    DirectGrazing
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLRoHS
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    0.75 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
