VGCO. VERGE CORNER TRUCOLOR RGB & TUNABLE WHITE 24VDC 5/8” DRYWALL PLASTER-IN LED SYSTEM, 5 CHANNEL CONTROL.
Configure
Add to project




RESOURCES
DESCRIPTION

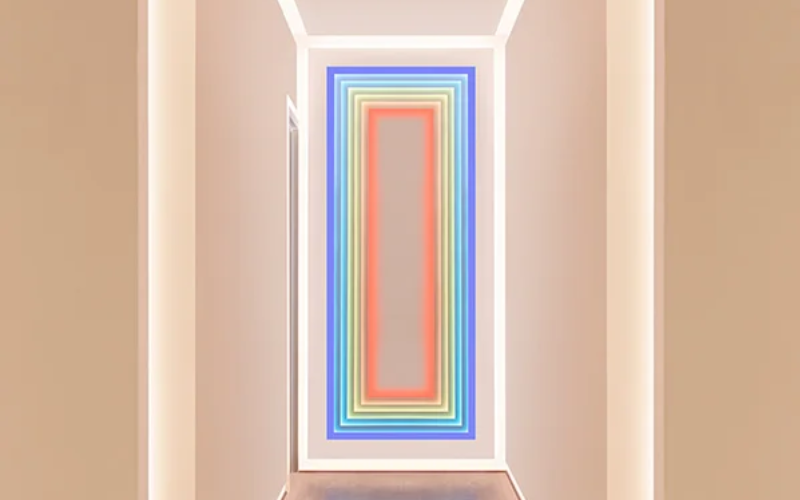

Verge Corner is another innovative design from PureEdge's family of 24VDC plaster-in systems, continuing to redefine the relationship between lighting and architecture. Verge Corner mounts directly to studs and joists without modification because it recesses within 5/8" or thicker drywall. The slim plaster-in aluminum channel has a 4" paintable backer plate creating visually interesting and dramatic illumination by highlighting the inside Corners of two drywall surfaces such as ceiling, coves, and skylights. Field-cuttable, Verge Corner is ordered in 1' increments up to 20'. The power feeds a 6 pin connector that will be wired with a 6 conductor cable to the remote Pure Smart Power Supply. Remote PSBB Power Supply with Integral Bridgebox is required. (PSBB-96W-WZ-TC5W5-RL sold separately) Verge brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity and empowering you to design One-of-a-kind spaces every time. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: Run length (Ft)H: 4"
- Light SourceLED
- CCT/ColorTunable White & Colors
- CRI94
- Watt(Approx)10 W/Ft14 W/Ft
- Lumens(Approx)296 Lm/Ft399 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USARoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingNew Construction
- Housing Depth0.75 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
VGCO-RGBTW
—
