VGCO. VERGE CORNER WARM DIM 24VDC, 5/8" DRYWALL PLASTER-IN LED SYSTEM.
Configure
Add to project




RESOURCES
DESCRIPTION

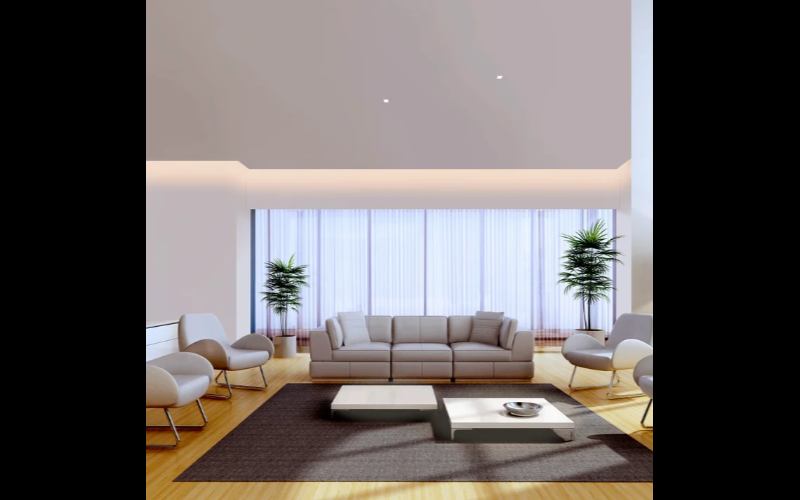

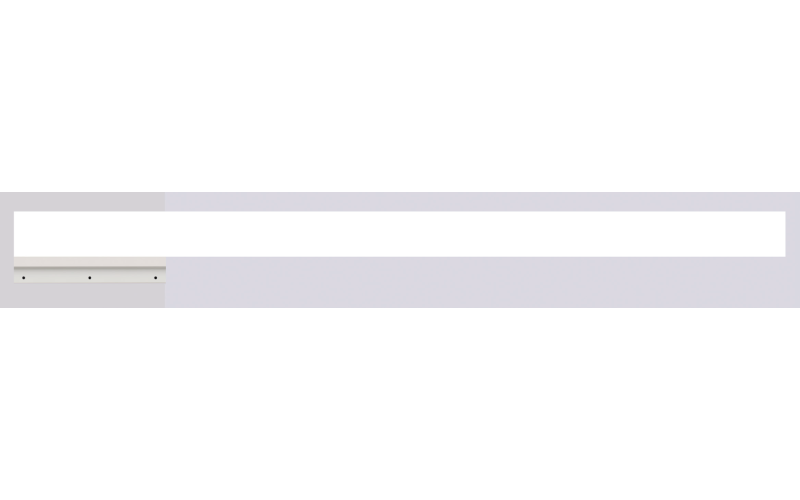

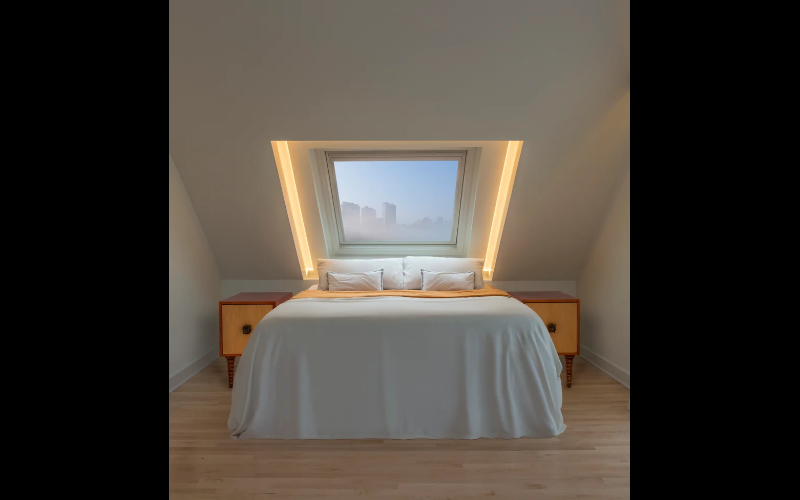

Verge Corner Warm Dim is another innovative design from PureEdge's family of 24VDC plaster-in systems, continuing to redefine the relationship between lighting and architecture. Verge Corner mounts directly to studs and joists without modification because it recesses within 5/8" or thicker drywall. The slim plaster-in aluminum channel has a 4" paintable backer plate creating visually interesting and dramatic illumination by highlighting the inside Corners of two drywall surfaces such as ceiling, coves, and skylights. Field-cuttable, Verge Corner is ordered in 1' increments up to 40'. Warm Dim technology (27D & 30D) mimics an incandescent atmosphere by decreasing the color temperature as you dim. Our Warm Dim strips can be dimmed all the way down to a soothing amber hue at 1800K, reminiscent of candlelight along the halogen curve Click here for all Other Color Temperatures. Verge brings together a Modern and Dynamic appearance to Residential and Commercial environments, offering unlimited creativity and empowering you to design One-of-a-kind spaces every time. Remote Power supplies are required and sold separately. Coordinate installation with electrical and drywall contractors. Includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K Dim to Warm3000K Dim to Warm
- CRI94 91
- Watt(Approx)10 W/Ft
- Lumens(Approx)405 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/Voltage
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedWall RecessedDrywall
- HousingFixture
- Housing Depth0.75 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
VGCO-WD
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
