PureEdge Lighting

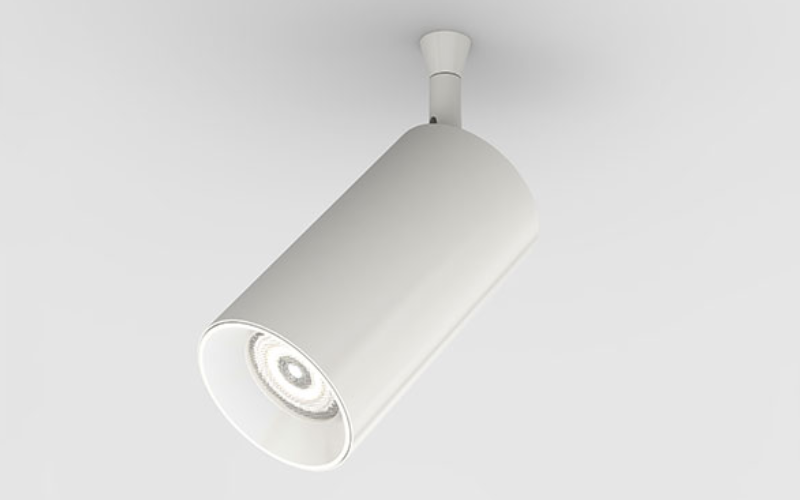

VR. VANISHING POINT PISTON LED 12VAC.
 Configure
 Add to project
DESCRIPTION
The Vanishing Point Piston Plaster-In System with integrated LED offers four distinct mounting options. Drywall Application VR: - Remote Power Supply (Order Separately) NO visible canopy, you will only see the 0.5" connection at the ceiling as the Fast Jack fixture vanishes into the ceiling. You may feed up to thirty 8 watt LED fixtures with 12V remote power supply. V2P - Connection point at ceiling will show a slight outline of the 2.0" round canopy, ELV power supply fits within the J-box. May be painted over to hide 2" round outline of canopy, but will need to be repainted if power supply needs to be replaced. Millwork Application: V2MR - Connection point at ceiling 2.0" canopy sits flush in Millwork ceilings for a clean look; remote power option may feed up to thirty 8 watt LED fixtures. V2MP - Connection point at ceiling 2.0" canopy sits flush in Millwork ceilings with included ELV power supply that fits inside J-box. Two Finish Options.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.8"
    L: 3.26"
    H: 1.8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K
  • CRI
    95
  • Watt(Approx)
    9 W
  • Lumens(Approx)
    517 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing
  • Controls/Network
  • Power/Voltage
    Remote120V
  • Integral Emergency
  • Lumen Maintenance
    35000 h
  • Certificates
    ETLT24*RoHS
  • Environment
    Damp
  • Mounting Type
    Monopoint
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
