VR. VANISHING SCOPE LED 12VAC.
Configure
Add to project
RESOURCES
DESCRIPTION

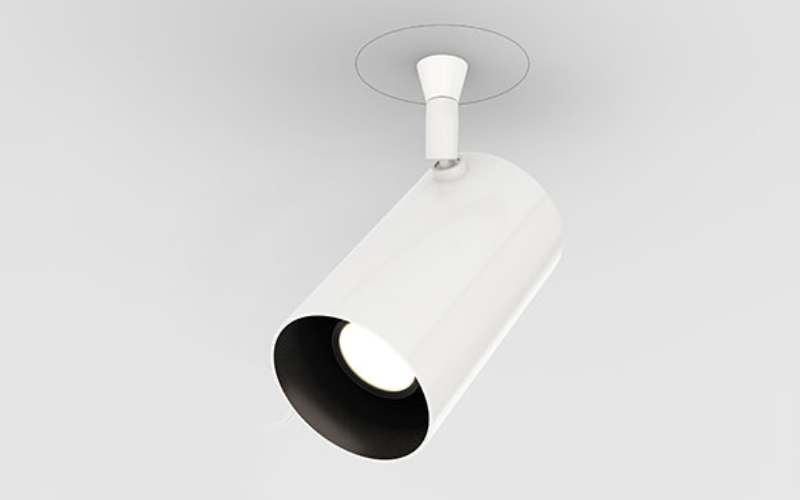

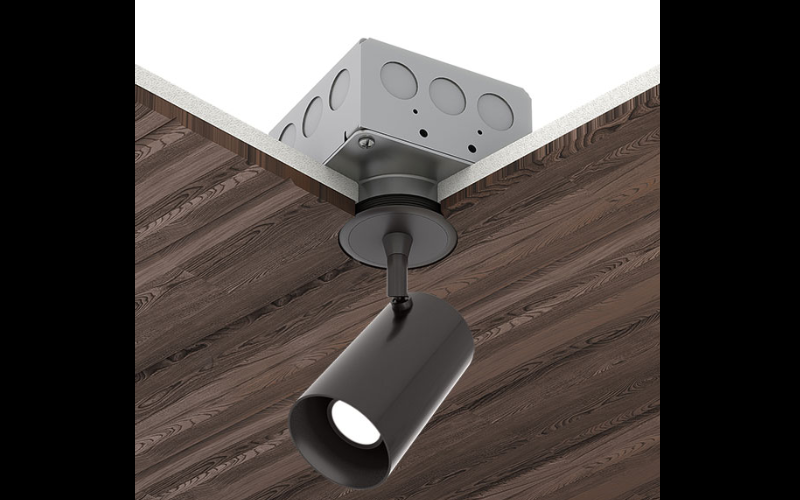

The Vanishing Point Scope LED offers four distinct mounting options for Drywall and Millwork, allowing for the most minimal and refined architecture in almost any application. The Scope LED fixture tilts 90° vertically. The Cool-to-the-Touch Rotating Lens enables Adjustment of the Beam Angle from a 20° spot to a 50° flood. Four finishes to choose from. Remote Power Supply option available for easy accessibility and the ability to feed up to 30 fixtures. Patent Pending.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.24"L: 2.24"H: 4"
- Light SourceLED
- CCT/Color3000K
- CRI92
- Watt(Approx)9.3 W/Ft
- Lumens(Approx)360 Lm/Ft
- OpticsDirectWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
