VR. VANISHING POINT TUBO LARGE WALL WASH 24VDC REMOTE POWER.
Configure
Add to project
RESOURCES
DESCRIPTION

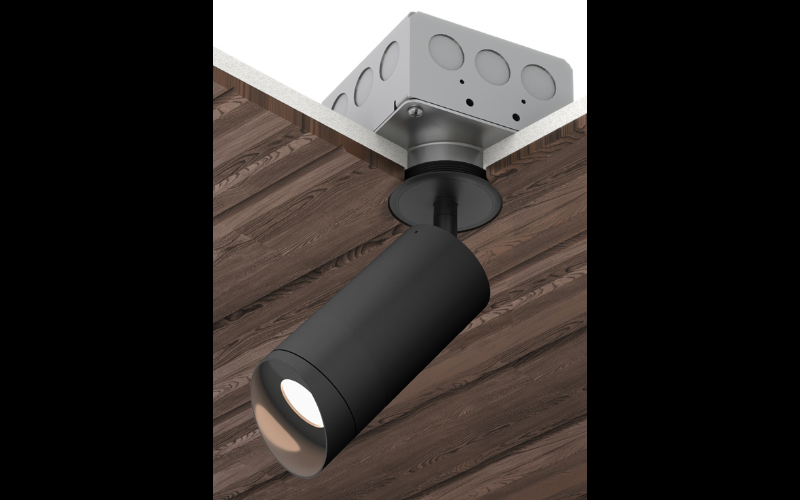

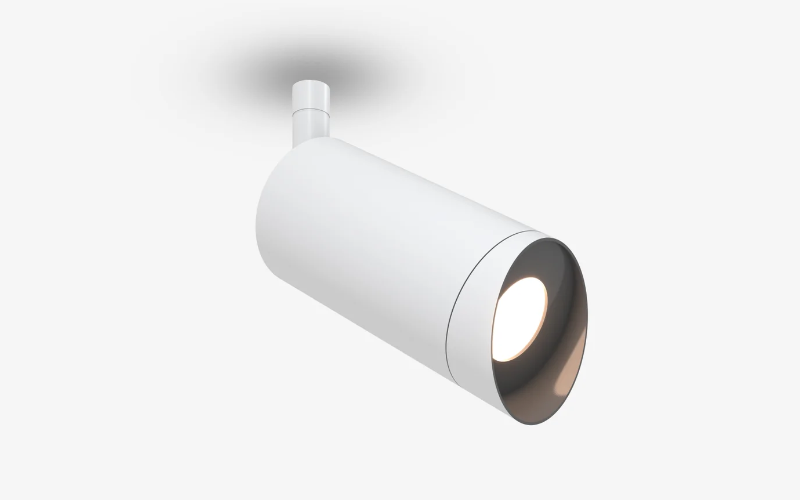

The Vanishing Point Tubo Large Wall Wash is a 24VDC Plaster-In System with integrated LED offered in two distinct mounting options for drywall and millwork. The 15 watt track head with integral LED that features a wall wash lens, and is available in multiple color temperatures including Warm Dim (30D). The fixture flat-backed tube heat sink design has 360° horizontal and 90° vertical rotation providing maximum illumination and efficiency within a small package. Fixture includes a 5 year pro-rated warranty. Patent Pending.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.44"L: 5.61"H: 2.44"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K
- CRI
- Watt(Approx)15 W
- Lumens(Approx)884 Lm
- OpticsDirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworkWireless Dimming
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLRoHS
- EnvironmentDampHealthcare General
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVR-TUBL
