PureEdge Lighting
W. TRAPEZE WAVE CHANDELIER OVAL 24VDC, STATIC WHITE, WARM DIM, TUNABLE WHITE, & TRUCOLOR.
 Configure
 Add to project
DESCRIPTION

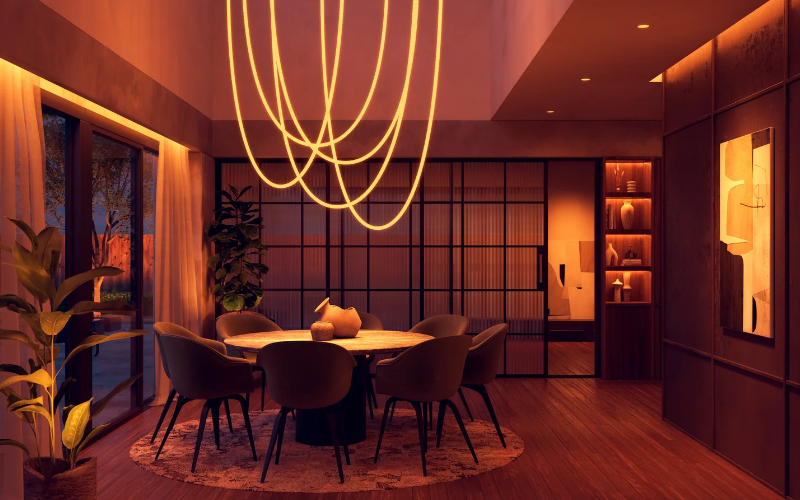

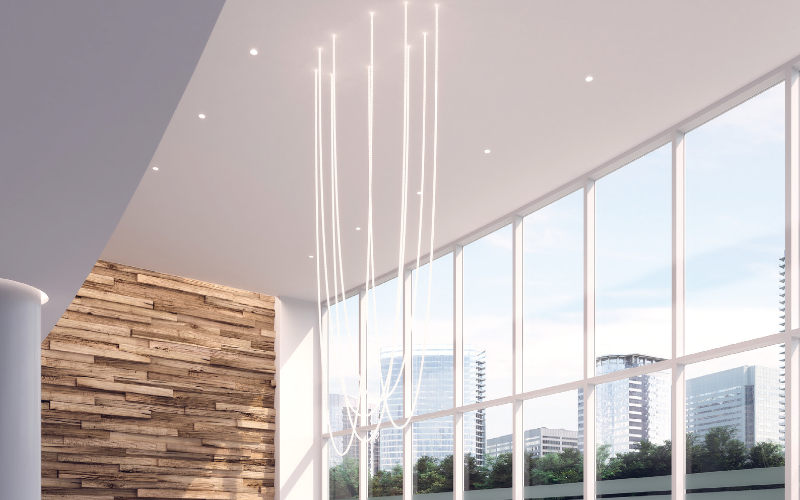

The Trapeze Wave Oval is a flexible, architectural lighting system that blends form and function to create continuous, 360-degree illumination without pixelation. Its sculptural, minimal design provides a striking visual element while delivering exceptional color rendering for a clean, uninterrupted glow.

Designed to offer both a sophisticated aesthetic and an inviting ambiance, the Trapeze Wave Oval enhances interiors with its fluid, seamless flow. Choose from Static White, Warm Dim (27D & 30D), Tunable White (2K4K & 27K6), or TruColor RGBTW which is our premier light engine with a wide spectrum from 1500K-6500K and exceptional color rendering (96+ CRI). TruColor RGBTW takes Tunable White to the next level. With the addition of the red, green, and blue channels to the tunable white we're able to achieve a level of quality, performance, and accuracy that was previously unattainable. TruColor RGBTW can be controlled with either DMX or WiZ Pro wireless controls. With flexible configuration options and precision engineering, the Trapeze Wave Oval serves as both a functional lighting solution and a design statement, making it the perfect solution for a wide range of applications.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 28"36"48"54"72"
    L: 72"96"120"192"
    H: 3 Ft4 Ft5 Ft6 Ft7 Ft10 Ft15 Ft
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & Colors
  • CRI
    90
  • Watt(Approx)
    5 W/Ft7 W/Ft
  • Lumens(Approx)
    977 Lm/Ft1406 Lm/Ft
  • Optics
    Omni-DirectionalVolumetric
  • Adjustable
  • Dimming
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    ETL
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
