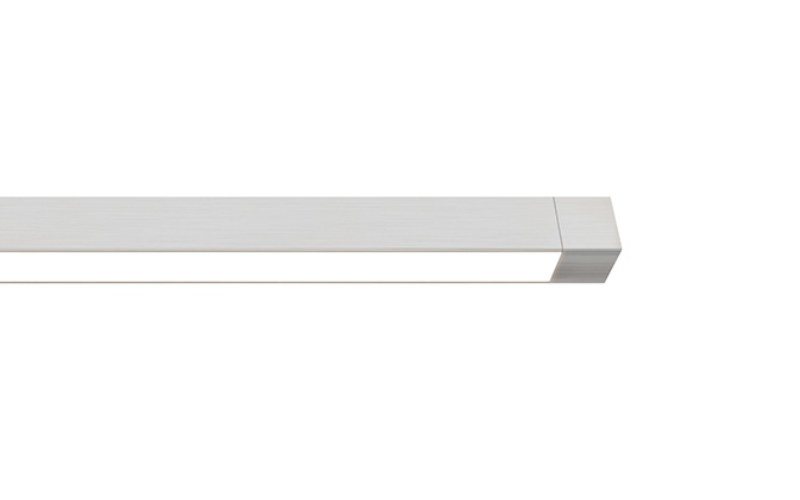

WSDP. ZIP WAVE DYNAMIC/TUNABLE DOWNLIGHT WITH POWER - CENTER FEED.
Configure
Add to project




RESOURCES
DESCRIPTION
Add curves and volume to any space with the Zipp Wave Suspension Downlight. This contemporary, curvy, linear LED fixture offers lighting that is crisp and spot-free. It is available in a range of increments from 48" to 120" (10'), a 100° beam spread, optional adjustable white or black louver, multiple finishes, and Dynamic/Tunable White. Using the latest in LED Technology Dynamic/Tunable White you have full control over the color temperature from 2000K (Sunset) to 6500K (Cool White) and the ability to fine-tune the brightness independently. Requires Two dimmers (one for 2000K and one for 6500K) or, use our proprietary Tunable White Controller for fast and accurate adjustment and three pre-set scenes (CDMX1) ordered separately. Human-Centric lighting supports health, performance, and overall well-being by adjusting with your circadian cycle. Order WSD_P with power supplies included in the canopy or WSD_R remote power supplies, sold separately. Fast Jack 12V Port Canopy (C1) for mounting Fast Jack fixtures to easily accommodate a variety of moods and tasks. Fixture includes a 5-year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.7"L: Run length (inch)H: 0.7"
- Light SourceLED
- CCT/ColorTunable White
- CRI
- Watt(Approx)4.6 W/Ft
- Lumens(Approx)96 Lm/Ft156 Lm/Ft252 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLRoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWSDP
—
