PureEdge Lighting
WSDP. ZIP WAVE SUSPENSION DOWNLIGHT WITH POWER - END FEED.
Configure
Add to project
RESOURCES
DESCRIPTION

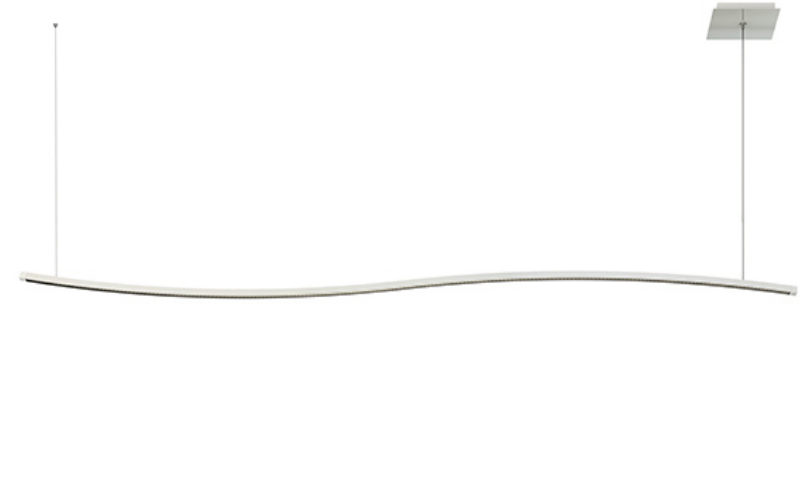

Add curves and volume to any space with the Zipp Wave Suspension Downlight. This contemporary, curvy, linear LED fixture offers lighting that is crisp and spot-free. It is available in a range of increments from 48" to 240" (20'), a 100° beam spread, optional adjustable white or black louver, multiple finishes, and a spectrum of color temperatures including Warm Dim. Fixture includes a 5-year warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.7"L: Run length (inch)H: 0.7"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000K5700K
- CRI85 95 84
- Watt(Approx)5 W/Ft7 W/Ft
- Lumens(Approx)306 Lm/Ft486 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%ELV/Reverse/Trailing
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWSDP-E
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
