ZC. ZIPP LED DIY (DO IT YOURSELF) CEILING/WALL, 24VDC REMOTE POWER.
Configure
Add to project



RESOURCES
DESCRIPTION

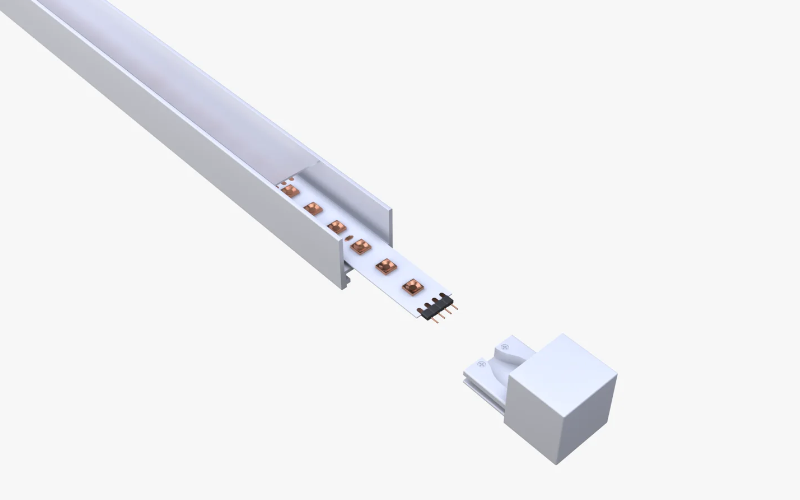

Zipp LED DIY (Do-It-Yourself) Ceiling/Wall LED System allows the Designer to create more complex configurations using Pre-Formed Components and connectors which simplify the installation process. Multiple runs of channel mount flawlessly together providing smooth, glare-free architectural illumination. The system mounts to a wall or ceiling with mounting clips and small junction box provided. The Zipp Wall/Ceiling Channel and Lens are sold in 4', 5', 8', and 10' increments. LED Soft Strip is sold in 1' increments up to 40' for 2.5 watt strip. Offered in multiple standard color temperatures: Static White, Warm Dim (27D or 30D), and Tunable White (2K6K or 27K6). Includes a 5 year pro-rated warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.7"L: Run length (Ft)H: 0.7"
- Light SourceLED
- CCT/Color2400K or less2700K2700K Dim to Warm3000K3000K Dim to Warm3500K4000KTunable WhiteTunable White & ColorsRGBRGBWYellow/AmberRedBlue
- CRI
- Watt(Approx)2.5 W/Ft2.6 W/Ft4.4 W/Ft4.8 W/Ft5 W/Ft4.6 W/Ft6.3 W/Ft7 W/Ft7.3 W/Ft7.5 W/Ft
- Lumens(Approx)173 Lm/Ft242 Lm/Ft362 Lm/Ft451 Lm/Ft500 Lm/Ft410 Lm/Ft669 Lm/Ft631 Lm/Ft548 Lm/Ft705 Lm/Ft554 Lm/Ft1033 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageRemote
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLADA
- EnvironmentDamp
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
