Prescolite (Current)

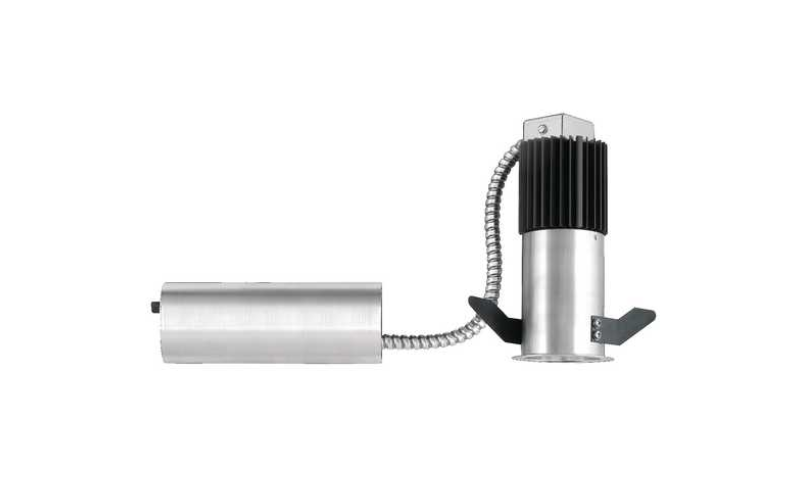

D2LED. Architektur 2'' LED WALL WASH.
Configure
Add to project
RESOURCES
DESCRIPTION
The D2LED Series of specification grade LED downlights and wall washers are designed for use in a variety of architectural, retail, commercial and institutional applications.
- Lumen outputs up to 1500 lumens exceeding 50/75 watt MR16 Halogen
- Available in multiple beam spreads or with a variety of lens options
- Utilizes Xicato Remote Phosphor LED module with color consistency <2 SDCM
- Completely accessible from below the ceiling
- Non-IC rated.
- Housing options include IC rated, Air Tight, Chicago Plenum
- Flush mount mud ring accessory allows flange to be flush to ceiling surface
- Minimum of 50,000 hours at 70% lumen maintenance
- Luminaires are certified by a Nationally Recognized Testing Lab (NRTL), either UL or CSA.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/8"L: 3 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 95
- Watt(Approx)12.6 W17.2 W21.1 W
- Lumens(Approx)705 Lm900 Lm1079 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to <1%0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSA
- EnvironmentWetHealthcare General
- Mounting TypeCeiling Recessed
- HousingNew ConstructionChicago PlenumIC Air Tight
- Housing Depth7 ''10 1/2 ''
