Prescolite (Current)

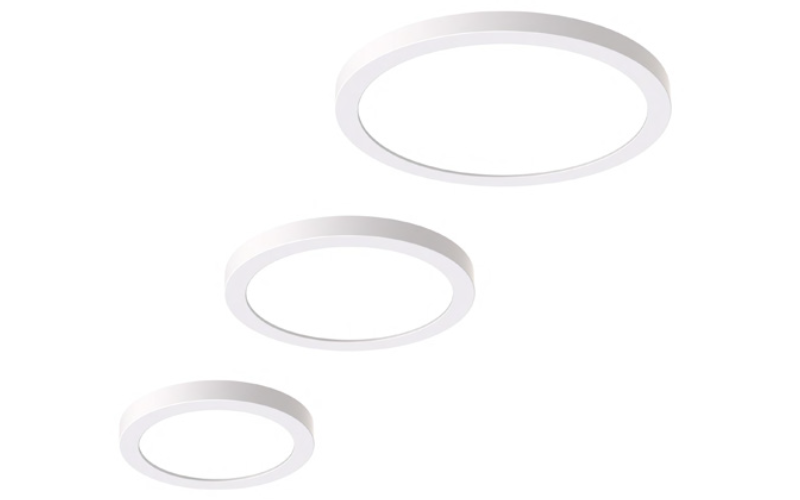

LBSES. LITEBOX EDGE-LIT ROUND SWITCHABLE CCT DIRECT J-BOX MOUNT DOWNLIGHT.
 Configure
 Add to project
Prescolite. LBSES. LITEBOX EDGE-LIT ROUND SWITCHABLE CCT DIRECT J-BOX MOUNT DOWNLIGHT.
Prescolite. LBSES. LITEBOX EDGE-LIT ROUND SWITCHABLE CCT DIRECT J-BOX MOUNT DOWNLIGHT.
Prescolite. LBSES. LITEBOX EDGE-LIT ROUND SWITCHABLE CCT DIRECT J-BOX MOUNT DOWNLIGHT.
RESOURCES
DESCRIPTION
  • 4", 6", and 8" aperture, delivering 750-1750 lumens
  • Low surface profile of 1/2"
  • Quick snap installation with no housing required
  • Direct J-Box Mount: Installs directly to most 3-1/2" and 4" J-Boxes
  • Remote Mount J-Box (RM): Includes a metal driver J-Box
  • EM accessory option adds only 1/16" to overall profile height
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.61"6"8"
    L: 4.61"6"8"
    H: 0.48"
  • Light Source
    LED
  • CCT/Color
    Field Select CCT
  • CRI
    90
  • Watt(Approx)
    9.9 W13.1 W19.3 W
  • Lumens(Approx)
    761 Lm1178 Lm1754 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    54000 h
  • Certificates
    ETLT24*Energy Star*
  • Environment
    Wet
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
