Prescolite (Current)

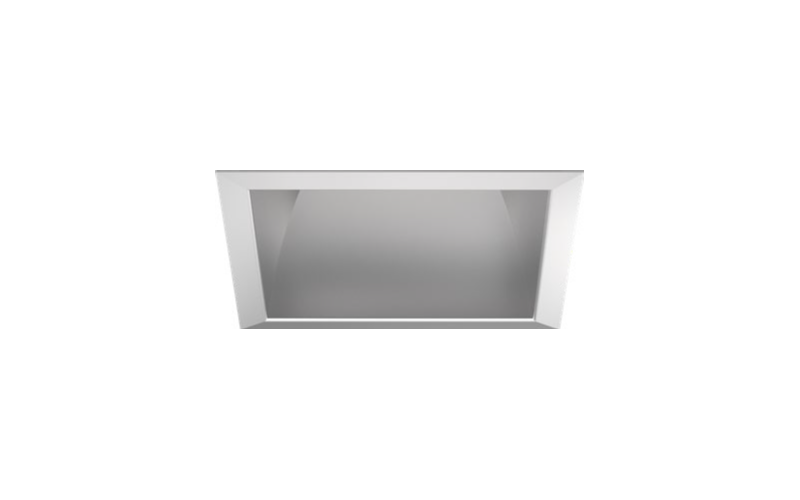

LFCR-6SD-R. LITEFRAME COMMERCIAL 6'' SQUARE REMODEL DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 6" square remodel downlight and wall wash delivering 500-5000 lumens
- LED source utilizes Current's patented TriGain® phosphor to deliver 90 CRI color quality at 80 CRI efficacy

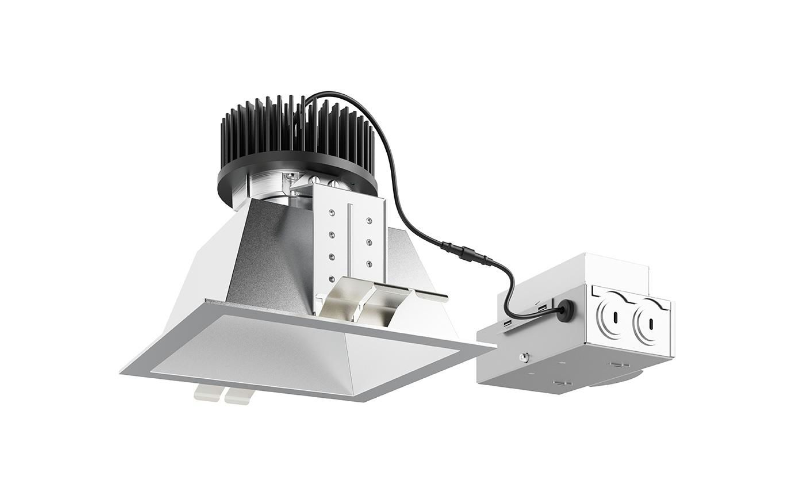

- Modular design with snap-in J-Box and quick disconnect provides fast and flexible installation from below ceiling
- NX Lighting Controls™, wired and wireless capability available
- Mix and match performance and budget for a cohesive project appearance with Prescolite's coordinated portfolio
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6"L: 6"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)5.9 W11.2 W15.2 W21.8 W24.1 W29.8 W36.8 W41.6 W45.3 W52.1 W
- Lumens(Approx)568 Lm1092 Lm1577 Lm2092 Lm2627 Lm3149 Lm3700 Lm4169 Lm4696 Lm5209 Lm
- OpticsDirectWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALIDMX
- Controls/NetworkLutron®BluetoothNX Wireless
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance66000 h
- CertificatesCSA
- EnvironmentAntimicrobial FinishWet
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingRemodel
- Housing Depth4.4 ''5.8 ''7.4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLFCR-6SD-R
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
