Prescolite (Current)

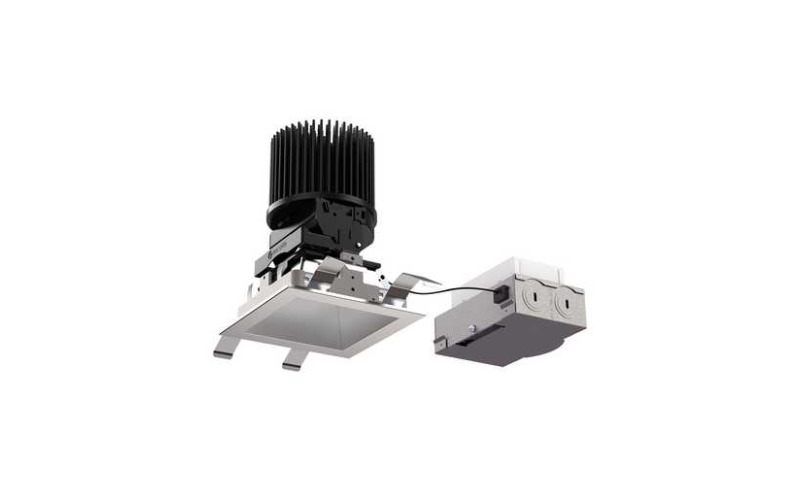

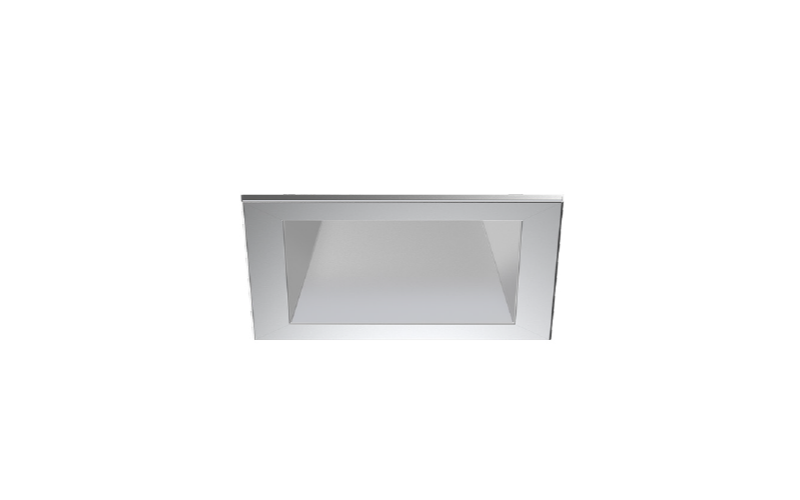

LFR-4SQD. LITEFRAME 4'' SQUARE DOWNLIGHT WITH COLOR TUNING SpectraSync.
Configure
Add to project
RESOURCES
DESCRIPTION
LiteFrame® 2.0 family balances the right solutions and performance while making it simple to select and flexible to use.
- 4" LED round downlight delivering 1000-6000 lumens
- Direct Install from below ceiling for New Construction or Remodel applications
- Optional housing accessories available
- Non-Conductive Shower trim or Lensed trim options with IP65 rating
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5.38"L: 5.38"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)12.5 W20.5 W32.2 W
- Lumens(Approx)1054 Lm1599 Lm2008 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkNX Wireless
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionICChicago Plenum
- Housing Depth5.53 ''5.18 ''7.11 ''6.76 ''8.51 ''8.16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLFR-4SQD-SS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
