Prescolite (Current)

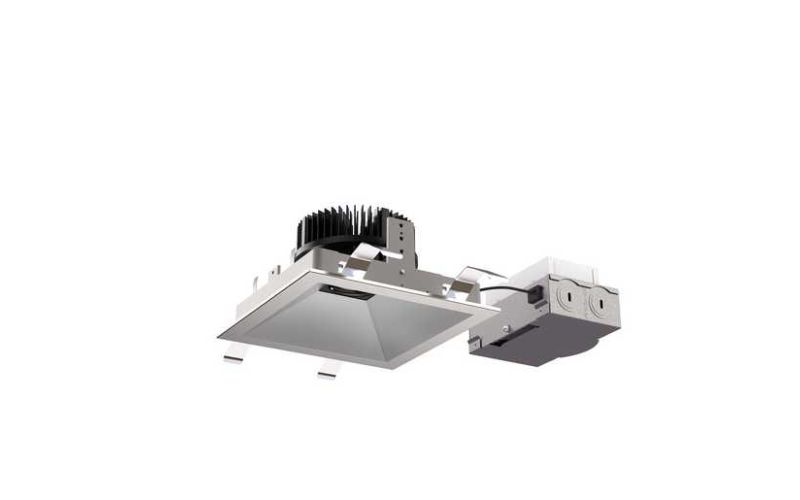

LFR-6SQDS. LITEFRAME 6'' SQUARE SHALLOW DOWNLIGHT WITH COLOR TUNING SpectraSync.
Configure
Add to project
RESOURCES
DESCRIPTION
LiteFrame® 2.0 family balances the right solutions and performance while making it simple to select and flexible to use.
- 6" LED round shallow downlight delivering 1000-3000 lumens
- Direct Install from below ceiling for New Construction or Remodel applications
- Optional housing accessories available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.38"L: 7.38"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)12.8 W19.6 W
- Lumens(Approx)1043 Lm1426 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkNX Wireless
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywall
- HousingNew ConstructionICChicago Plenum
- Housing Depth3.56 ''4.95 ''10.82 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLFR-6SQDS-SS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
