Prescolite (Current)

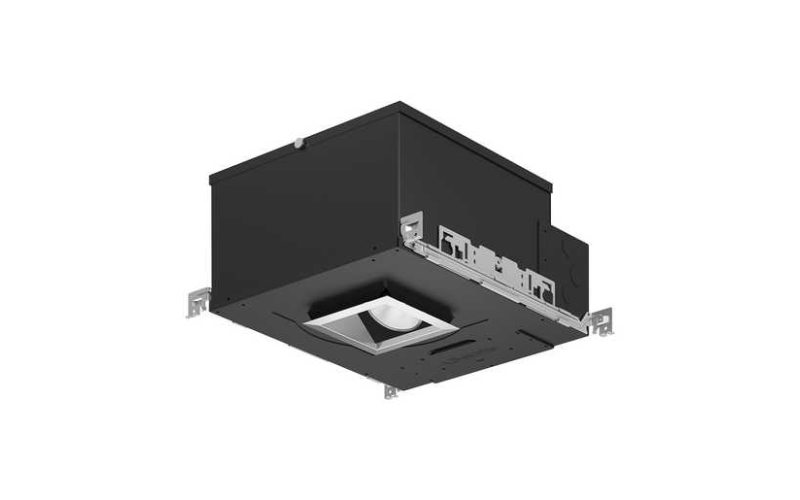

LTR-4SQA. LITEISTRY 4'' SQUARE ADJUSTABLE WITH COLOR TUNING SpectraSync.
Configure
Add to project
RESOURCES
DESCRIPTION
- 4" architectural LED square adjustable accent delivering 600–3500 lm
- Available with SpectraSync™ Tunable White and Dim-to-Warm options
- NX Lighting Controls™, wired and wireless capability available
- Four field interchangeable beam distributions from 15° to 45°
- Translating center beam optic allows 0–35° vertical tilt, 362° horizontal rotation
- Select from three lower trim styles: Full Cut Cone, Pinhole, or Slot
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.69"L: 4.69"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)10 W18 W27 W
- Lumens(Approx)600 Lm1000 Lm1500 Lm
- OpticsDirectNarrowMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothNX Wireless
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishDampHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago Plenum
- Housing Depth7.074 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLTR-4SQA-SS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
