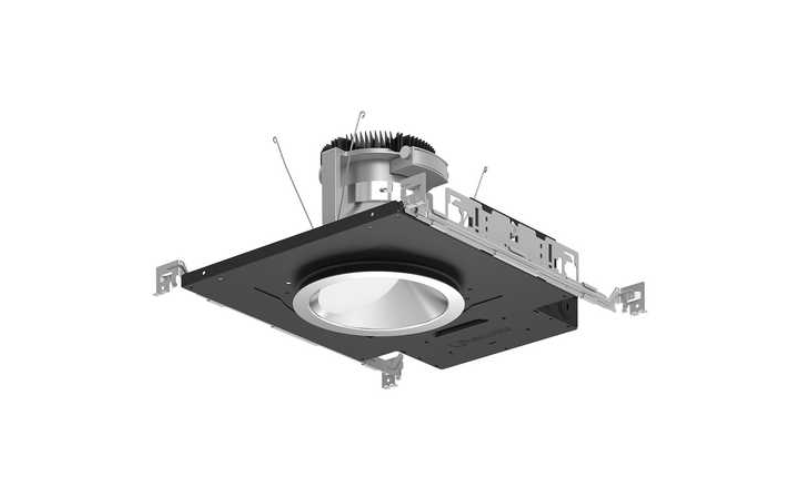

LTR-6RW-LPrescolite (Current)LTR-6RW. LITEISTRY 6'' ROUND LENSED WALL WASH.SPECIFICATIONS
- DimensionsW: 6.54"L: 6.54"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)8 W12 W19 W23 W28 W35 W43 W52 W55 W
- Lumens(Approx)600 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX/RDM
- Controls/NetworkBluetoothNX Wireless
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishWetHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago Plenum
- Housing Depth6.18 ''6.46 ''7.93 ''7.68 ''
DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.(Approx) - Shown approximate values. Actual values may very depending on fixture configuration. Refer to manufacturer documentation for more information.
Values can be adjusted manually as required in schedule view.
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBERPRODUCT DESCRIPTION—- 6" architectural LED lensed round wall wash delivering 600–4500 lm
- Available with SpectraSync™ Tunable White and Dim-to-Warm options
- NX Lighting Controls™, wired and wireless capability available
- Provides smooth uniform vertical illumination
- New Construction (non-IC), IC, and Chicago Plenum options available
