Prescolite (Current)

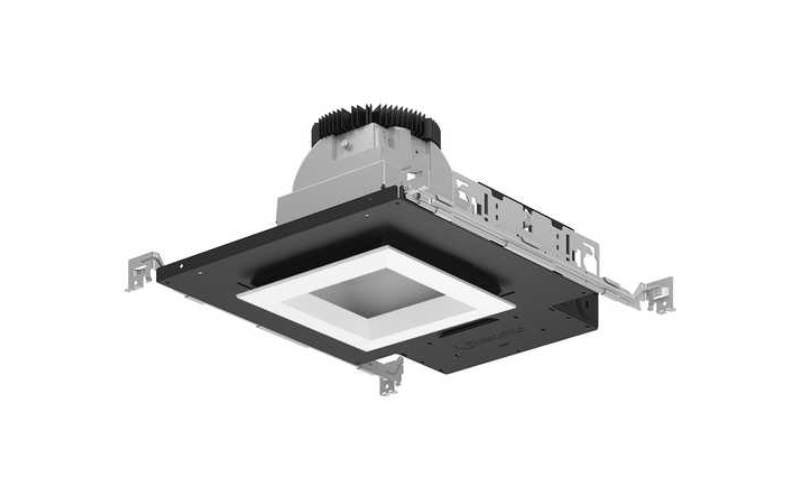

LTR-6SQD-H. LITEISTRY 6'' SQUARE NON-CONDUCTIVE SHOWER DOWNLIGHT.
Configure
Add to project
RESOURCES
DESCRIPTION
- 6” architectural LED square downlight delivering 600-9000 lumens
- Available with SpectraSync™ Tunable White and Dim-to-Warm options
- NX Lighting Controls™, wired and wireless capability available

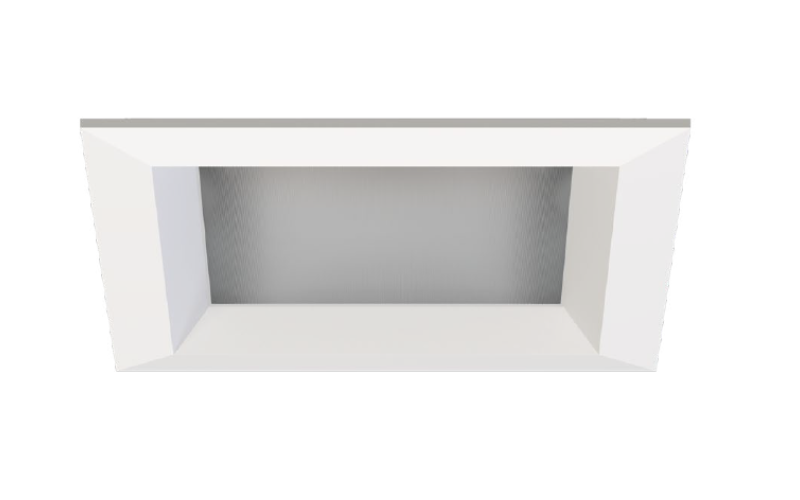

- Quiet reflector appearance with 50° optical cutoff
- New Construction (non-IC), IC, and Chicago Plenum options available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7.4"L: 7.4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)7.8 W12 W18.6 W22 W27.8 W34.6 W51.5 W429 W
- Lumens(Approx)486 Lm776 Lm1115 Lm1533 Lm1864 Lm2221 Lm2698 Lm3084 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX/RDM
- Controls/NetworkLutron®BluetoothNX Wireless
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesCSANSFBAA
- EnvironmentAntimicrobial FinishShowerIP65Healthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago Plenum
- Housing Depth6 ''6.78 ''7.96 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLTR-6SQD-H-SH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
