Prescolite (Current)

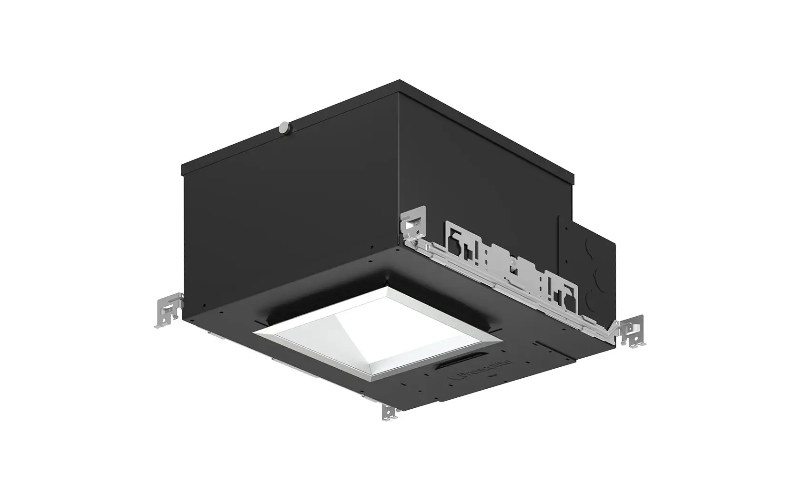

LTR-6SQW. LITEISTRY 6'' SQUARE LENSED WALL WASH WITH COLOR TUNING SpectraSync.
Configure
Add to project
RESOURCES
DESCRIPTION
- 6" architectural LED lensed square wall wash delivering 600–4500 lm
- Available with SpectraSync™ Tunable White and Dim-to-Warm options
- NX Lighting Controls™, wired and wireless capability availableProvides smooth uniform vertical illumination
- New Construction (non-IC), IC, and Chicago Plenum options available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.47"L: 6.47"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)10 W18 W25 W36 W38 W49 W
- Lumens(Approx)600 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkBluetoothNX Wireless
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishWetHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago Plenum
- Housing Depth6.82 ''7.64 ''9.18 ''9.88 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLTR-6SQW-L-SS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
