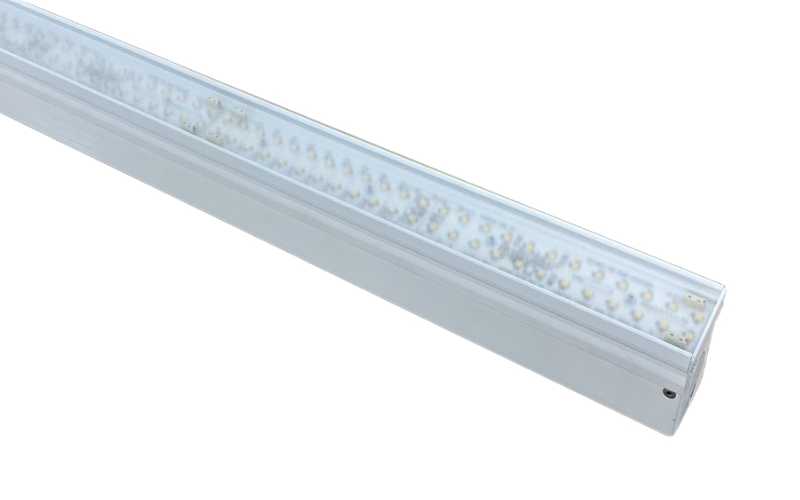

Picasso Lighting
CV2. COVE - 200.
Configure
Add to project
RESOURCES
DESCRIPTION
- Same as Cove 100 but higher lumen output.
- 2 ft., 3 ft., 4 ft., 6 ft., and 8 ft.
- Tool-less snap-on gear tray
- Die formed 20GA steel housing
- Quick connect wiring system available
- Integral 0-10V dimming driver standard
- 120° Beam spread standard
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 7/8"L: 24"36"48"72"96"Run length (Ft)H: 2 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)
- Lumens(Approx)1500 Lm/Ft2000 Lm/Ft
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALILutron EcoSystem 5 (LDE5)Lutron EcoSystemDMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoE120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAIBEW
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCV2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
