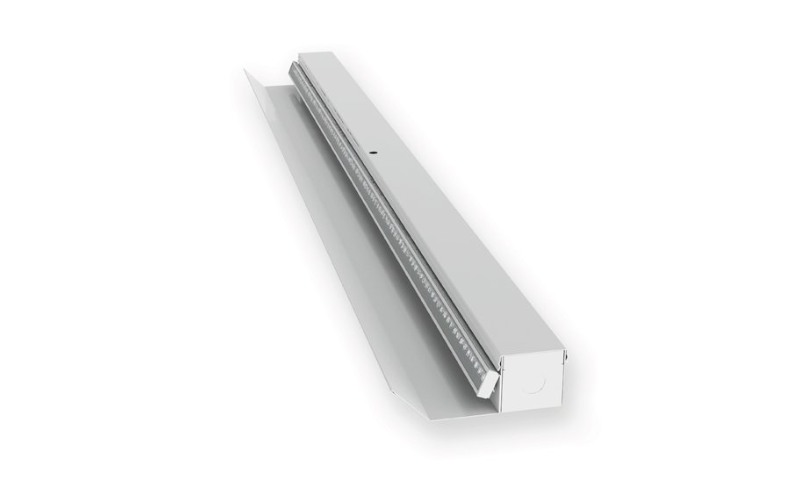

Picasso Lighting
CV5-CF. COVE - 500.
Configure
Add to project
RESOURCES
DESCRIPTION
- Designed to replace existing fluorescent cove lighting
- Proprietary field adjustable tilt mechanism using thumb screw
- Tool-less snap-on gear tray
- Die-formed 20 GA steel housing
- Quick connect wiring system available
- Integral 0-10V dimming driver standard
- 120° spread standard
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 13/16L: 24"36"48"72"96"Run length (Ft)H: 2 1/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)3.5 W/Ft5 W/Ft7.7 W/Ft10.5 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft
- OpticsIndirectGeneral Diffused
- AdjustableAdjustable
- DimmingDim to 1%Non-Dim0-10VDALIDMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoE120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAIBEW
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCV5-CF
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
