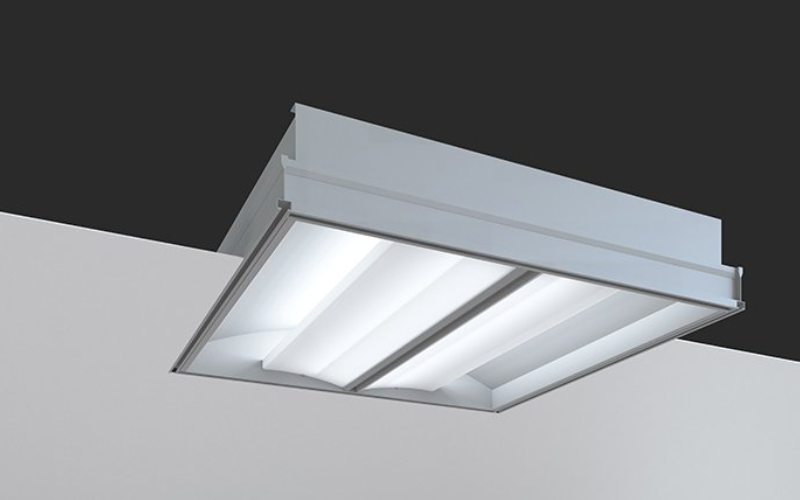

ELI-R. Eliana 2x2 RECESSED STANDARD.
Configure
Add to project
RESOURCES
DESCRIPTION
- Patented aesthetically pleasing design coupled with balanced illumination
- Shallow housing depth satisfies most plenum requirements
- Optically-enhanced extruded diffusers effectively eliminate lamp images providing soft illumination
- 2x2
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)34 W
- Lumens(Approx)2800 Lm
- OpticsDirect
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron EcoSystem 5 (LDE5)Lutron EcoSystemDMX
- Controls/NetworkEthernetIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USAIBEW
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionICChicago Plenum
- Housing Depth4 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeELI-R-22
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
