CDI. CHUTE180 4” Open Suspended Linear Direct/Indirect.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

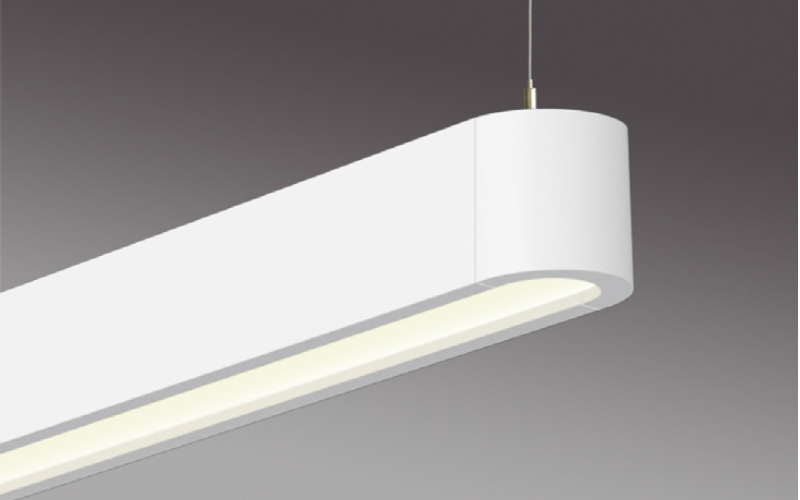

CHUTE 180 lands smoothly in any space — combining clean, open-aperture linear lighting with a distinctive curved endcap that creates a fresh, modern profile. Its 2.5" luminous aperture delivers smooth, uninterrupted lines of light, while the curved ends add natural flow to layouts that can otherwise feel rigid.
Compact, efficient, and versatile, CHUTE 180 Suspended provides high-performance direct or direct/indirect illumination for individual fixtures, continuous runs, or patterns. A durable co-extruded Light Protection Guard (LPG) protects LED components and ensures lasting optical performance.
Ideal for workplaces, hospitality, education, and commercial interiors where design and comfort matter.
Compact, efficient, and versatile, CHUTE 180 Suspended provides high-performance direct or direct/indirect illumination for individual fixtures, continuous runs, or patterns. A durable co-extruded Light Protection Guard (LPG) protects LED components and ensures lasting optical performance.
Ideal for workplaces, hospitality, education, and commercial interiors where design and comfort matter.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: Run length (Ft)H: 3 13/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4.2 W/Ft5.2 W/Ft6.2 W/Ft7.7 W/Ft10 W/Ft7.6 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirect/IndirectBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance146500 h
- CertificatesETLDeclareBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
