Pinnacle Architectural Lighting (Legrand)

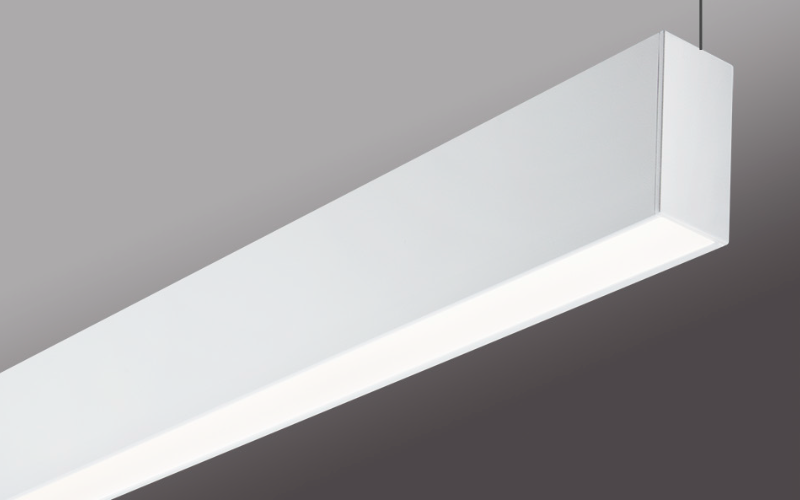

EX1. EDGE EX1 Direct.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
The EDGE EX1 Direct the looks just as good as it performs – from mounting hardware to thinner housing rails – everything was designed in proportion to this minimalistic fixture.
The EDGE EX1 Direct allows for perfect lines of light in individual fixtures and continuous rows. Specify every detail of each fixture to make it blend into the space or stand out as a statement. Multiple shielding options allow you to sculpt the light while standard corners, X’s and T’s ensure that light stays uninterrupted.
Engineered acrylic provides just the right amount of diffusion with minimal light loss from the lens. The combination of diffuse and reflective material provides optimal lens illumination, efficacy, and control of the beam shape.
The EDGE EX1 Direct allows for perfect lines of light in individual fixtures and continuous rows. Specify every detail of each fixture to make it blend into the space or stand out as a statement. Multiple shielding options allow you to sculpt the light while standard corners, X’s and T’s ensure that light stays uninterrupted.
Engineered acrylic provides just the right amount of diffusion with minimal light loss from the lens. The combination of diffuse and reflective material provides optimal lens illumination, efficacy, and control of the beam shape.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (Ft)H: 3 9/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4.5 W/Ft8.6 W/Ftcustom
- Lumens(Approx)432 Lm/Ft797 Lm/Ftcustom
- OpticsDirectFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Step Dim0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance124900 h
- CertificatesUL/CULADABAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEX1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
