Pinnacle Architectural Lighting (Legrand)
EX4D. EDGE EX4 Direct with Indigo-Clean Technology.
 Configure
 Add to project

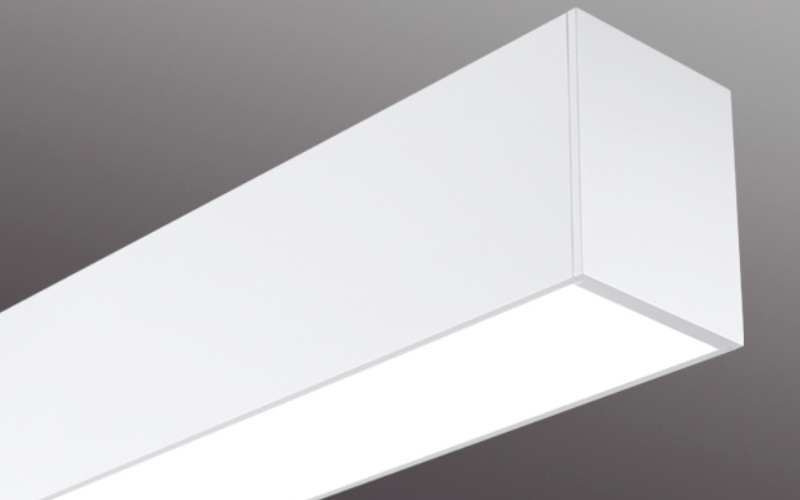

Pinnacle Architectural Lighting. EX4D. EDGE 4” Suspended Direct Linear Indigo-Clean.
Pinnacle Architectural Lighting. EX4D. EDGE 4” Suspended Direct Linear Indigo-Clean.
RESOURCES
DESCRIPTION
EDGE EX4 Direct using Indigo-Clean combines white, ambient light with 405nm Indigo light to provide continuous visible light disinfection whenever the light is on.
Many every day environments can be unintentional breeding grounds for harmful bacteria, including Staph, such as MRSA: healthcare facilities, classrooms, offices, conference facilities, rehabilitation centers, and more. Indigo-Clean is laboratory-tested* and integrated into luminaires that are built to Pinnacle’s strict standards.
*Lab data available upon request.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4 1/2"
    L: Run length (Ft)
    H: 5 1/2"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4500K
  • CRI
    80
  • Watt(Approx)
    12.9 W
  • Lumens(Approx)
    1270 Lm1303 Lm1333 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    80000 h
  • Certificates
    ETLMade in USAIndigo‑CleanBAA
  • Environment
    Antimicrobial FinishAntimicrobial LightDamp
  • Mounting Type
    PendantCeiling SurfaceWall Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
