DESCRIPTION

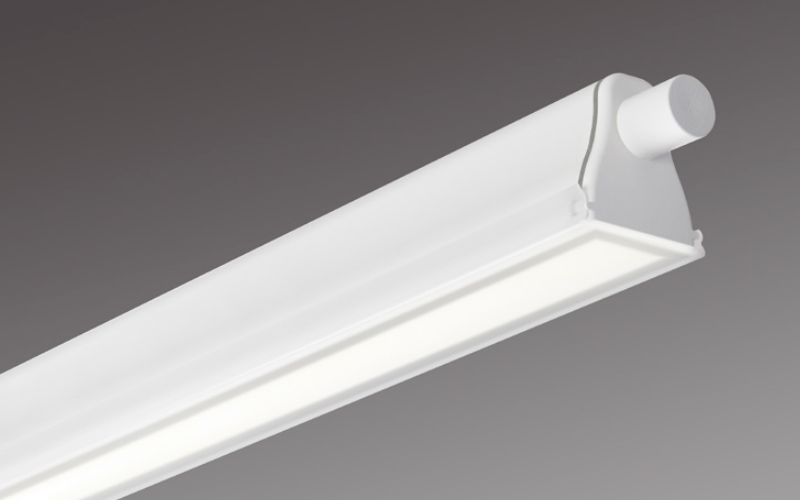

Moffat Wet has a petite profile that illuminates a specific surface or highlights an exact point in outdoor, wet applications and is IP65 Rated. The small profile allows the fixture to blend into any space, but up close, the housing has a simple curve detail to give it definition.
Moffat is ideal for exterior applications. Ensure design continuity from inside to out when highlighting signage, artwork, retail displays, or a unique feature wall. A specific waterproof lens and gasket combination ensure a dry seal for a UL Wet Listing Certification. Natatorium rated option also available.
Individual fixtures can be mounted and connected via the hub on the endcap to ensure a continuous look in a larger application. With a field rotatable function, Moffat is perfect for that ever-changing piece of artwork or a yet-to-be-defined design.
Moffat is ideal for exterior applications. Ensure design continuity from inside to out when highlighting signage, artwork, retail displays, or a unique feature wall. A specific waterproof lens and gasket combination ensure a dry seal for a UL Wet Listing Certification. Natatorium rated option also available.
Individual fixtures can be mounted and connected via the hub on the endcap to ensure a continuous look in a larger application. With a field rotatable function, Moffat is perfect for that ever-changing piece of artwork or a yet-to-be-defined design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/4"L: Run length (Ft)H: 3 7/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)4 W8.3 W10.8 W11.4 Wcustom
- Lumens(Approx)350 Lm750 Lm1000 Lm1250 Lmcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Step Dim0-10VLutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance146500 h
- CertificatesETLBAA
- EnvironmentIP65Natatorium
- Mounting TypePendantCeiling SurfaceWall SurfaceWall Arm/Cantilever
- Housing
- Housing Depth
