Pinnacle Architectural Lighting (Legrand)

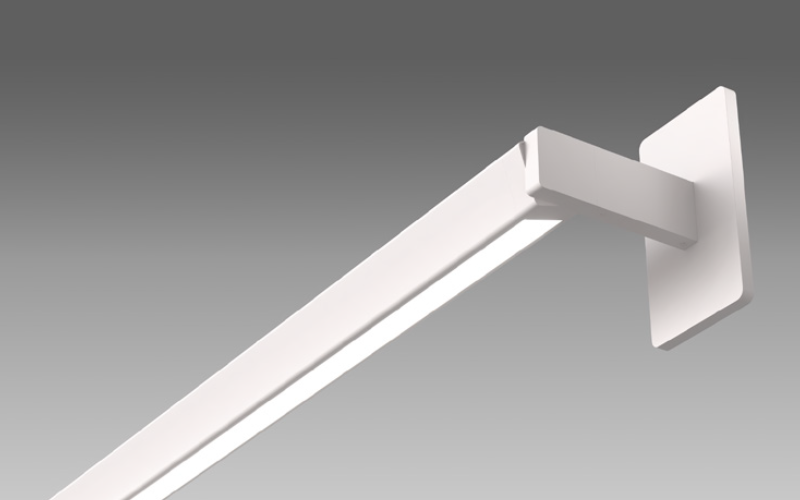

PK. PIKA Arm Mount Micro Linear.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Point this way. Point that way. Point any way.
Precision and consistency. Count on Pika to make both possible. In suspended and wall-mounted applications, Pika delivers 345° of rotational flexibility. Discrete angle reference marks and flush locking screws support repeatable aiming and give designers confidence that their vision will be executed as intended.
Pika Wall/Pendant Arm
Wall and pendant arms preserve Pika’s compact visual language while opening up more mounting possibilities, with lengths from 3” to 24”. Arm lengths greater than 12” require a tie-back cable.
Precision and consistency. Count on Pika to make both possible. In suspended and wall-mounted applications, Pika delivers 345° of rotational flexibility. Discrete angle reference marks and flush locking screws support repeatable aiming and give designers confidence that their vision will be executed as intended.
Pika Wall/Pendant Arm
Wall and pendant arms preserve Pika’s compact visual language while opening up more mounting possibilities, with lengths from 3” to 24”. Arm lengths greater than 12” require a tie-back cable.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/16”L: Run length (Ft)H: 1 3/16”
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)1.8 W/Ft1.7 W/Ft1.6 W/Ft1.5 W/Ft3 W/Ft2.9 W/Ft3.5 W/Ft3.4 W/Ft3.3 W/Ft3.1 W/Ft4.6 W/Ft4.5 W/Ft4.4 W/Ft5.4 W/Ft5.2 W/Ft5.1 W/Ft6.9 W/Ft6.3 W/Ft6.1 W/Ft6 W/Ft7.3 W/Ft7.1 W/Ftcustom
- Lumens(Approx)250 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectIndirectDirect/IndirectGrazingMediumFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VLutron Hi-lume EcoSystem (LDE1)Xitanium SReldoLED ECO 0-10VeldoLED SOLO 0-10VEldoLED 0-10V/DALI
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance254800 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypePendantWall Arm/Cantilever
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePK-W
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
