Pinnacle Architectural Lighting (Legrand)
T4A. TESA.
 Configure
 Add to project
RESOURCES
DESCRIPTION

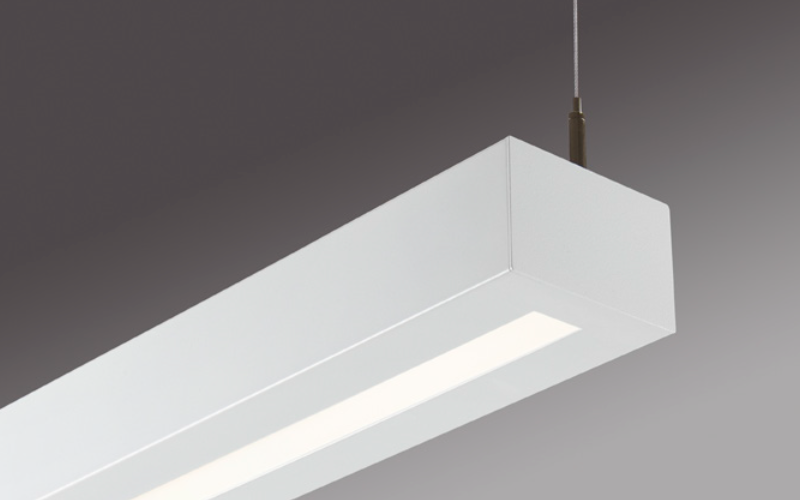

TESA is a slender, linear luminaire that produces a clean, indirect light source fit for any architectural space with a standard 90% indirect, 10% direct distribution.  This mostly indirect distribution allows for even, wide-spread illumination across the ceiling and a soft, effective downlight.

The 4” wide by 2-1/4” high profile provides a slim form factor while still allowing for the perfect punch of indirect light. The wide throw enables the product to be installed in low-ceiling applications with 16’ on-center spacing. The lens opening creates a soft, uniform illumination down the length of the fixture.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4"
    L: Run length (Ft)
    H: 2 1/4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    5.1 W8.8 W11.9 W15.6 Wcustom
  • Lumens(Approx)
    400 Lm750 Lm1000 Lm1250 Lmcustom
  • Optics
    Indirect/DirectBatwing Indirect/General Direct
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULBAA
  • Environment
    Damp
  • Mounting Type
    Pendant
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
