PMC Lighting
ARCX. DIRECT/INDIRECT, DIRECT OR INDIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION

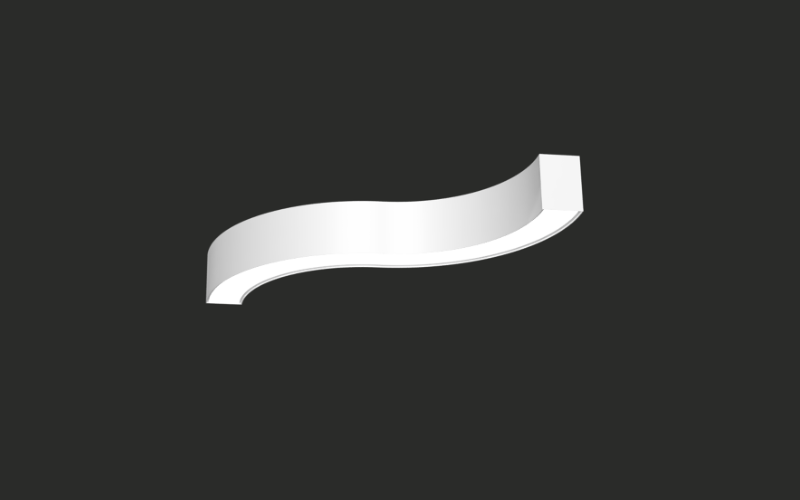

- Extruded aluminum narrow curved luminaire

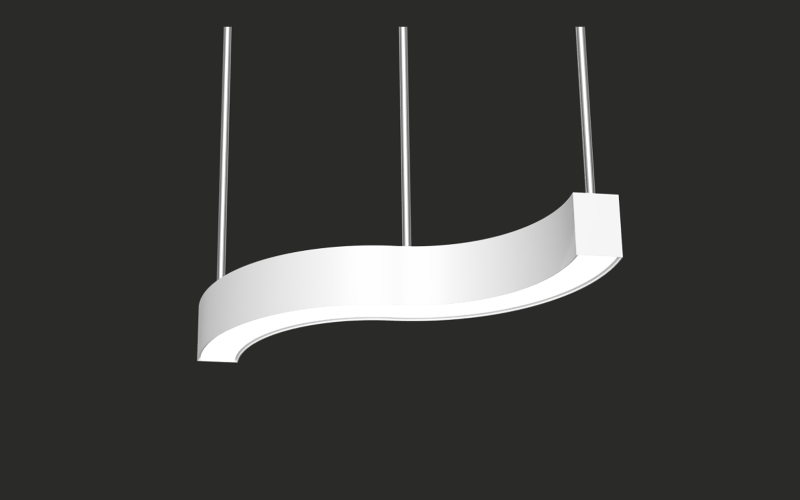

- Suspended, Surface or Recessed mounting
- Minimum radius 1.5 foot
- Build 2 Spec customizable
- Standard White, Black and Silver powder coat finish. Custom Colors available
- Available with pūr-led 405nm wavelength antimicrobial lighting options
- Available with Aura tunable white and RGB/RGBW full color options
- Available with bios static and dynamic 490nm wavelength circadian lighting options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.75"26.5"34.5"49.75"62.5"75.75"95.75"120.75"156.75"L: 13.25"17.25"26.5"24.9"22.50"34.5"31.25"37.9"33.50"49.75"47.9"44.50"62.5"63.12"55.75"75.75"66.75"78.38"78"89"95.75"120.75"156.75"H: 4.5"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000KTunable White
- CRI80 90
- Watt(Approx)2.2 W/Ft3.4 W/Ft5.1 W/Ft6.8 W/Ft10.6 W/Ft14.3 W/Ft
- Lumens(Approx)350 Lm/Ft550 Lm/Ft850 Lm/Ft1100 Lm/Ft1650 Lm/Ft2200 Lm/Ft
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceCeiling RecessedDrywallTrimless DrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth4.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeARCX-N
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
