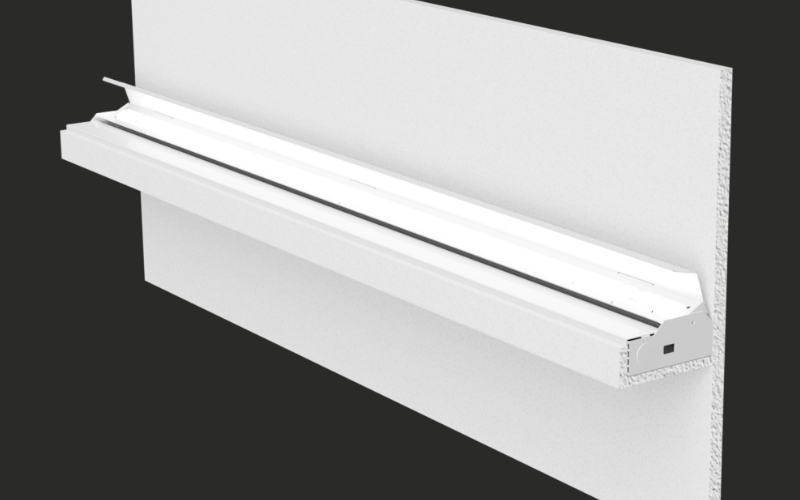

RC5626. PERI-MITTARI ADJUSTABLE INDIRECT HIGH EFFICIENCY LED SURFACE IN-COVE.
Configure
Add to project
RESOURCES
DESCRIPTION
- 5.62″W x 2.62″H Steel Housing Linear LEDt fixture, Adjustable Aiming Indirect distribution
- Nominal lengths from 2′ to 4′
- Damp Location Rated, cETLus Listed
- Output up to 1350lm/ft
- 3000 to 5000k, Tunable White and Color options
- 80CRI standard, 90CRI optional
- 0-10v dimming down to 10% standard, other options available
- Perimeter Cove Mounting
- White powder coat standard, custom colors available
- Available with Aura tunable white and RGB/RGBW full color options
- Available with bios static and dynamic 490nm wavelength circadian lighting options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.32"L: 24"36"48"H: 3.77"
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
- CRI80
- Watt(Approx)2.2 W/Ft3.4 W/Ft5.1 W/Ft6.8 W/Ft10.6 W/Ft14.3 W/Ft
- Lumens(Approx)350 Lm/Ft550 Lm/Ft850 Lm/Ft1100 Lm/Ft1650 Lm/Ft2200 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance72000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
