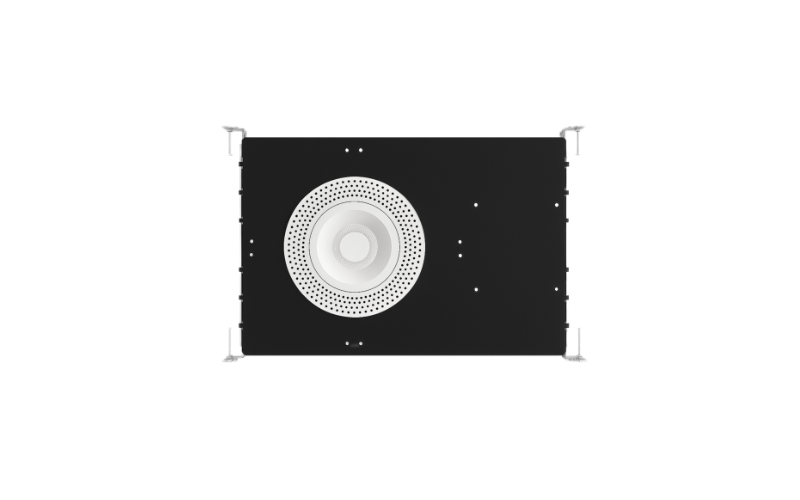

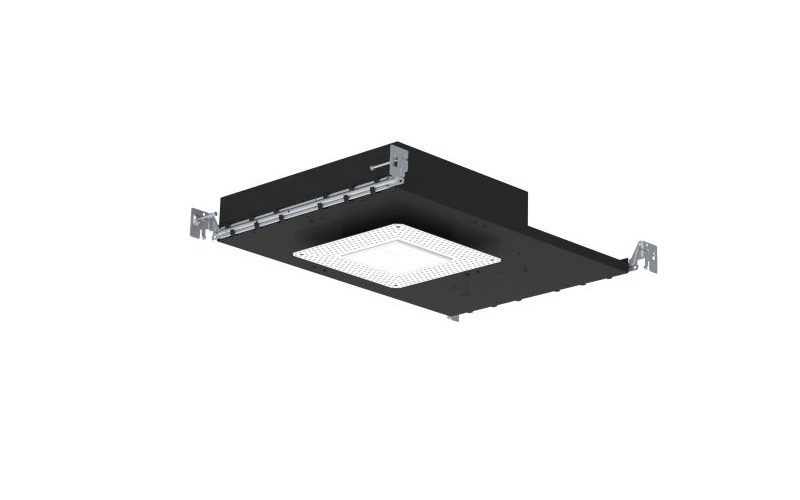

NVTN-3-SA. Novation LED 3” Shallow Adjustable IC Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
Novation® Shallow Adjustable Housing is a pioneer in LED Downlighting, utilizing proprietary water-cooling technology to allow for 359° rotation and 30° pivot in a housing that is just 2½” in depth.
Fully trimless trims available.
Fully trimless trims available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.19"4.35"4.3"L: 4.35"4.3"2.19"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K
- CRI90 95
- Watt(Approx)10 W14 W23 W30 Wcustom
- Lumens(Approx)1054 Lm1495 Lm2450 Lm3185 Lmcustom
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron Hi-lume Premier Eco (L3D0E)DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance61000 h
- CertificatesUL/CULT24*
- EnvironmentDampShowerWet
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingChicago PlenumIC Air Tight
- Housing Depth2.44 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNVTN-3-SA
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
