NVTN-3-UNO. Novation UNO Modular Downlight for Innovative Design.
Configure
Add to project
RESOURCES
DESCRIPTION

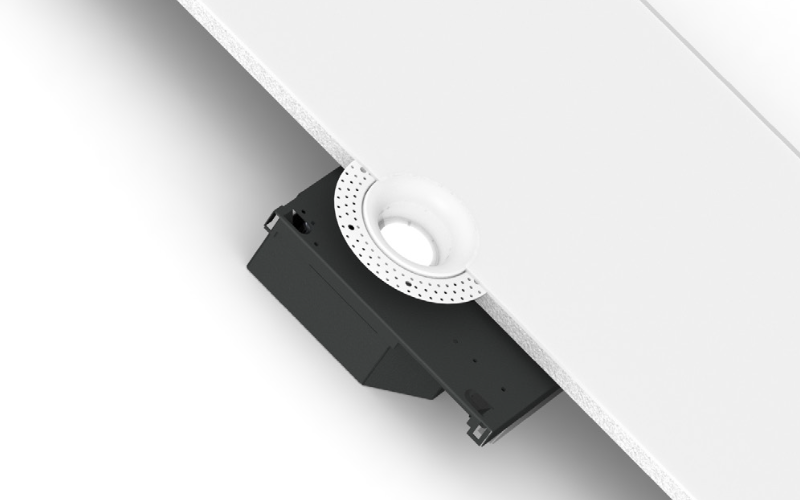

Designed for new construction, the Novation Uno features a seamless plaster-in trim for a clean, modern ceiling aesthetic. Its integrated light engine and driver maximize serviceability without disturbing the trim. A modular design enables up to four fixtures to be connected in a tight square configuration, offering greater flexibility for architectural layouts.
Fully trimless trims available.
Fully trimless trims available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.09"L: 4.09"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)16.5 W
- Lumens(Approx)
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- Certificates
- Environment

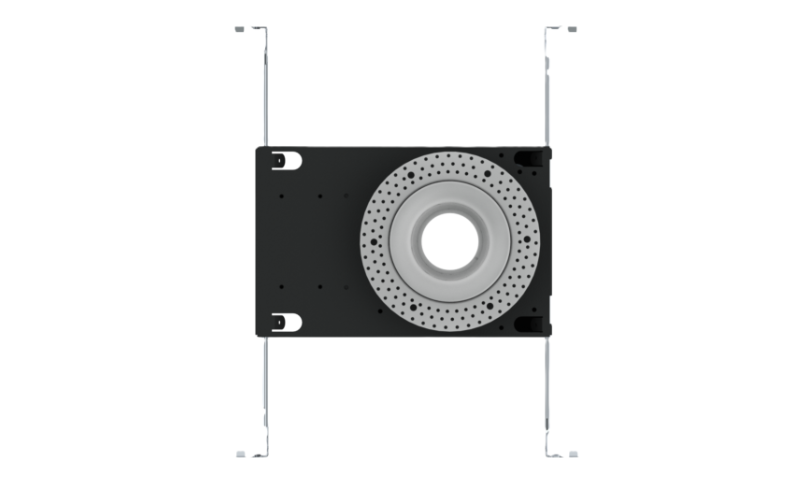

- Mounting TypeCeiling RecessedDrywall
- HousingChicago PlenumIC Air Tight
- Housing Depth3.27 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNVTN-3-UNO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
