PreciseLED

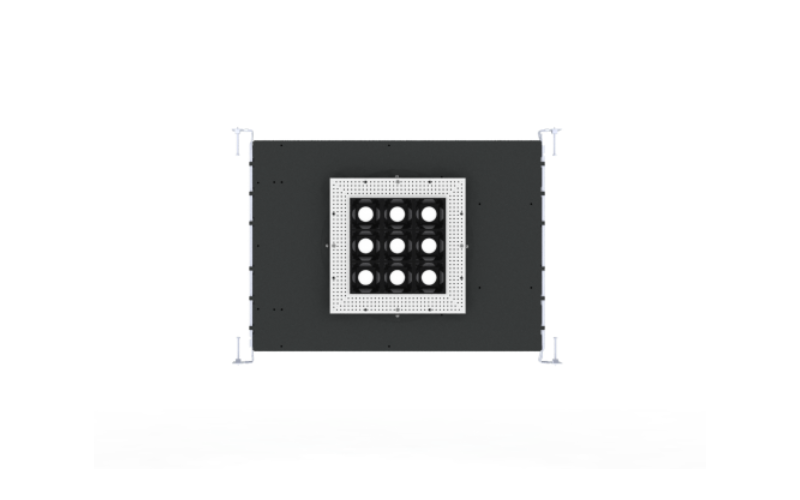

NVTN-MC. Novation LED Shallow MicroLouvre Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
The Novation® MIcroLouvre downlight has a height of just 2-7/16 inches with 9 potential active “cells” and freedom to pick and choose from different configurations. With a minimum of 2 cells occupied at 10W, any configuration within the 9 cells is possible.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.06"L: 6.06"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 95
- Watt(Approx)4 W5.55 W8.33 W10 Wcustom
- Lumens(Approx)438 Lm548 Lmcustom
- OpticsDirectNarrowFlood
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance61000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless Drywall
- HousingChicago PlenumAir Tight
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeNVTN-MC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
