PreciseLED

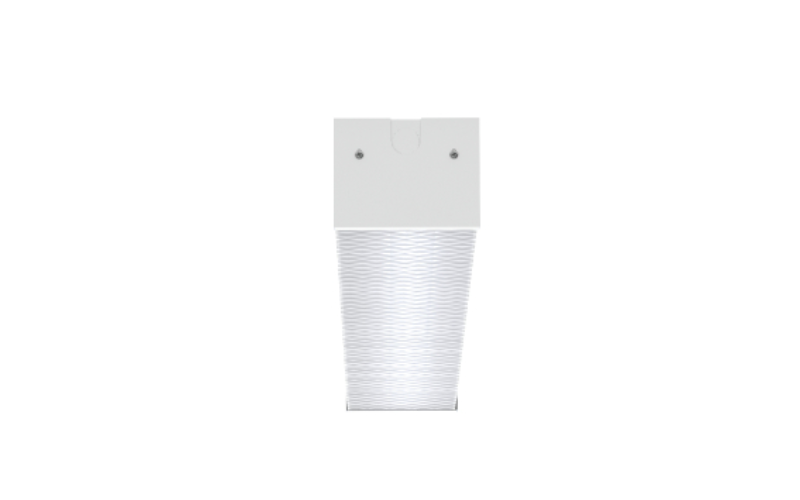

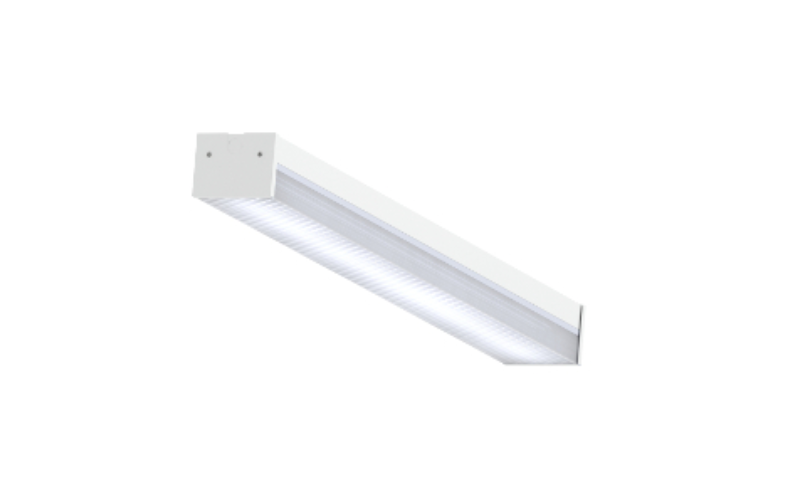

STVW. Stairview Surface Mount LED Lighting System.
Configure
Add to project
RESOURCES
DESCRIPTION
STAIRVIEW is setting the standard for reliable, functional lighting for stairways and back-of-house areas. With efficacy over 115 lm/w, it is one of the most efficient light sources available today. Available with bilevel sensor and emergency backup options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.7"L: 23.21"H: 3.61"
- Light SourceLED
- CCT/Color3000K4000K
- CRI80
- Watt(Approx)25 W
- Lumens(Approx)2900 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
