PreciseLED

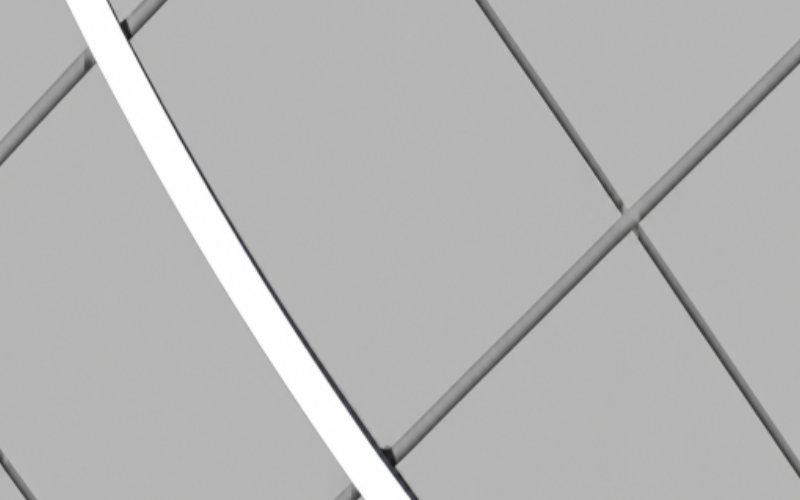

ZNLT-ARC1. ZENLITE ARC1 ACT CEILING .
Configure
Add to project
RESOURCES
DESCRIPTION
ZENLITE® Arc1 is a curved LED Lighting System for 50/50 ceilings that can be specified to any curvature. Our patent-pending design features an easy installation process. The channel is installed directly to blocking, allowing the electrician to complete their work! The contractor can then put up the 9/16 T-Grid. The Zenlite Arc1 can be combined with the Arc1 Pendant and Surface mounted fixtures to create one continuous seamless light. ZEN LITE® Arc1, along with the rest of the ZENLITE® series, allows for complete freedom of light design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.35"L: Run lenght (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI95
- Watt(Approx)2 W/Ft4.4 W/Ft6 W/Ft8 W/Ft
- Lumens(Approx)214 Lm/Ft222 Lm/Ft277 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-DimELV/Reverse/Trailing0-10VLutron Hi-lume Premier 3-wire (L3D03W)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- Environment
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth.84 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeZNLT-ARC1-ACT
