PreciseLED
ZNLT-COVE. ZENLITE Wall Mount LED Lighting System.
Configure
Add to project
RESOURCES
DESCRIPTION

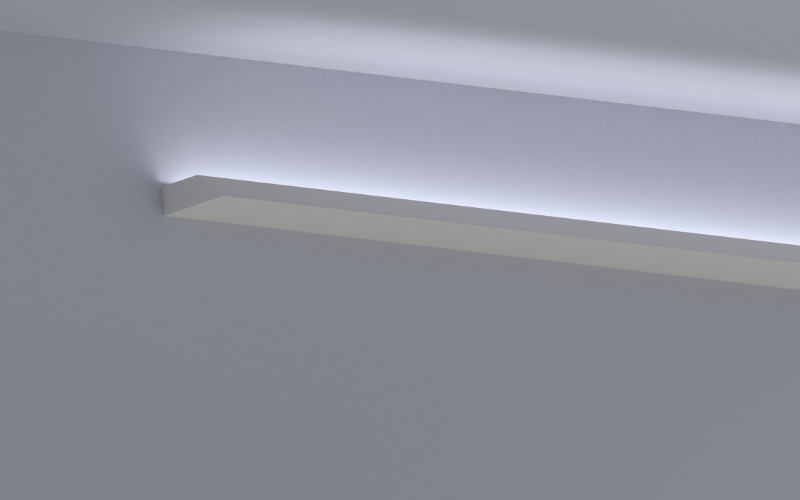

ZENLITE® COVE is a wall mount LED Lighting System for indirect illumination near the ceiling. The fixture accepts Lumamate and PreciseLED tape lights which can lie and lean on the reflector for different light angle projection. Channel is installed directly to drywall with 16-inch spacing brackets. The channel is field cuttable and allowing for a variety of configurations. To achieve a certain light output, choose between the different available light modules and color temperatures. Light modules are also dimmable when using a dimmable driver.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.66"3.56"L: Run length (inch)H: 1.1"1.86"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KRGBRGBW
- CRI95
- Watt(Approx)
- Lumens(Approx)
- OpticsIndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-Dim0-10VLutron Hi-Lume 3-wire (L3D)Lutron Hi-lume Premier 3-wire (L3D03W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CUL
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeZNLT-COVE
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
