Portfolio (Cooper Lighting Solutions)

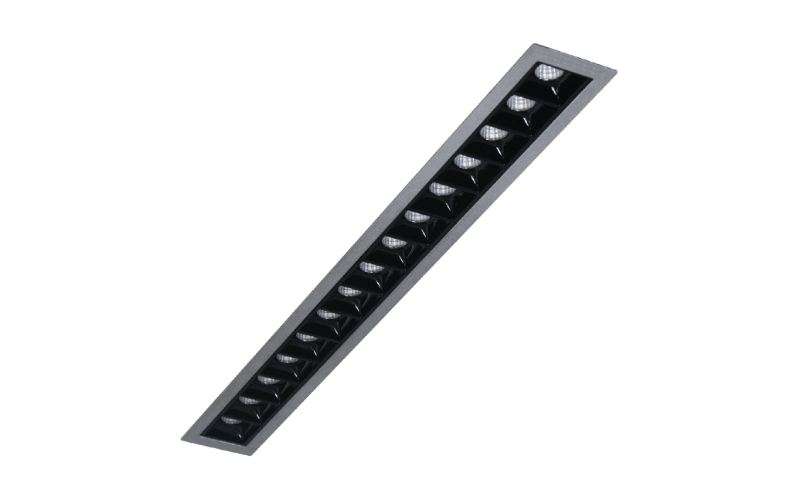

LD1M/LA1M. 1'' Downlight, Adjustable & Wall Wash Multi-cell.
Configure
Add to project
RESOURCES
DESCRIPTION
Designed to discretely compliment any space, the 1" multi-cell is offered in adjustable, wall wash and downlight providing smooth impressive output without brightness. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available. Available for new construction and install from below. Accessory mud in ring provides seam less installation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 13.7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)3.6 W
- Lumens(Approx)200 Lm
- OpticsDirectMediumWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%Dim to <1%0-10VFifth Light DALILutron EcoSystemDMX/RDM
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegral120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULT24*Energy Star*
- EnvironmentDampHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth3.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
