Portfolio (Cooper Lighting Solutions)
LD6D. 6" Round, New Construction Downlight with High Center Beam Optics Full Spectrum SINGLE LINE.
Configure
Add to project
RESOURCES
DESCRIPTION

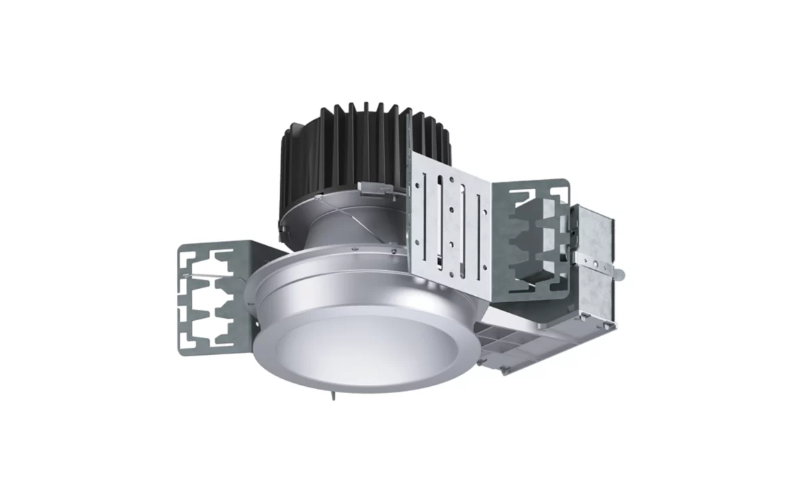

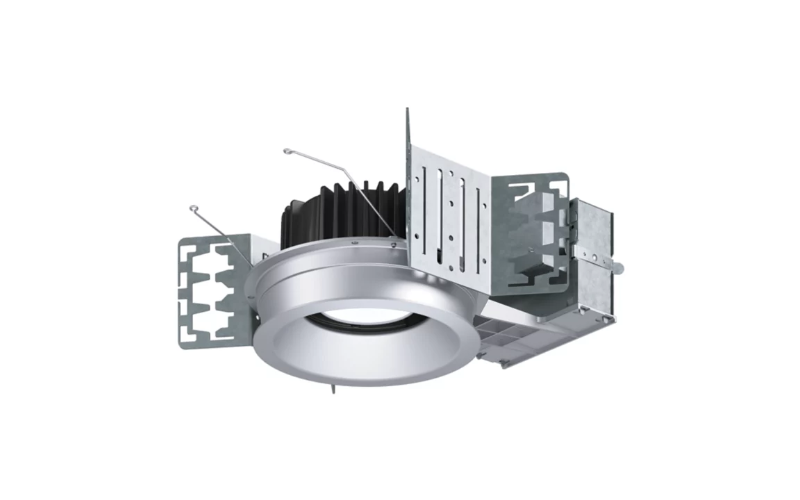

The 6" new construction round recessed downlight, with Interchangeable precise optics in 5° increments from 10°-70° producing smooth distribution with excellent light control and low aperture brightness. The luminaires are available with 45° cutoff or shallow reflectors with lumen out of 9500. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.94"L: 6.94"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KFull Spectrum
- CRI98
- Watt(Approx)3.9 W6.9 W8.1 W11.1 W15.5 W23.2 W27.6 W32.5 W34.2 W35.6 W40 W
- Lumens(Approx)250 Lm500 Lm800 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm3500 Lm4000 Lm4500 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VFifth Light DALILine VoltageLutron EcoSystemDMX/RDM
- Controls/NetworkWaveLinxIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesUL/CULT24*Energy Star*RoHSBAA
- EnvironmentAntimicrobial FinishDampHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth4.82 ''7.33 ''6.12 ''8.63 ''10.63 ''8.12 ''
