Portfolio (Cooper Lighting Solutions)
LDA3D. 3'' Adjustable / Accent /Downlight.
 Configure
 Add to project

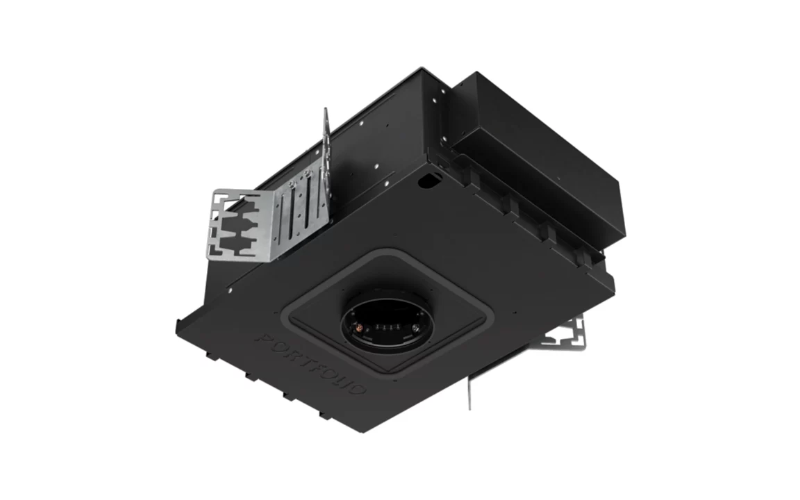

Portfolio. LDA3D. 3'' Adjustable / Accent /Downlight.
Portfolio. LDA3D. 3'' Adjustable / Accent /Downlight.
Portfolio. LDA3D. 3'' Adjustable / Accent /Downlight.
Portfolio. LDA3D. 3'' Adjustable / Accent /Downlight.
RESOURCES
DESCRIPTION
  • Round 3-inch adjustable for accent, downlight, or wall wash
  • Interchangeable precision optics in 8°, 12°, 10º-70° in 5° increments, and assymetric distributions
  • 365° of rotation and 45° of tilt + Z-axis vertical adjustment for precise hot aiming
  • Unmatched trims and finishes for every space and style in standard flange or millwork/plaster knife edge rimless
  • 90, 97 or 98 CRI (2 SDCM), 6 Color Temperatures, Dim-to-Warm™, VividTune™ Tunable White, & BioUp™ Melanopic
  • Standard dimming down to 1%, ENERGY STAR® qualified; Integral or remote driver options
  • Servicability: LED Light engine and magnetic snap-in driver replaceable from below the ceiling
  • Lumens: 250 – 2,400
  • Declare® Certified: Contains no LBC Red List chemicals
  • Wavelinx and DLVP connected systems, 5-year warranty
  • Plaster lathing ring accessory offered for flush reflector transition
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.46"4.54"
    L: 4.54"3.46"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
  • CRI
    90 97 98
  • Watt(Approx)
    4.2 W8.7 W13.5 W16.5 W23.3 W30.1 W30.8 W
  • Lumens(Approx)
    250 Lm500 Lm900 Lm1300 Lm1700 Lm2000 Lm2400 Lm
  • Optics
    DirectNarrowMediumFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron EcoSystemDMX/RDM
  • Controls/Network
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    55000 h
  • Certificates
    UL/CULT24*Energy Star*RoHSDeclareBAA
  • Environment
    DampWet
  • Mounting Type
    Ceiling RecessedDrywallTrimless Drywall
  • Housing
    New ConstructionChicago Plenum
  • Housing Depth
    5.46 ''6.73 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
