Portfolio (Cooper Lighting Solutions)

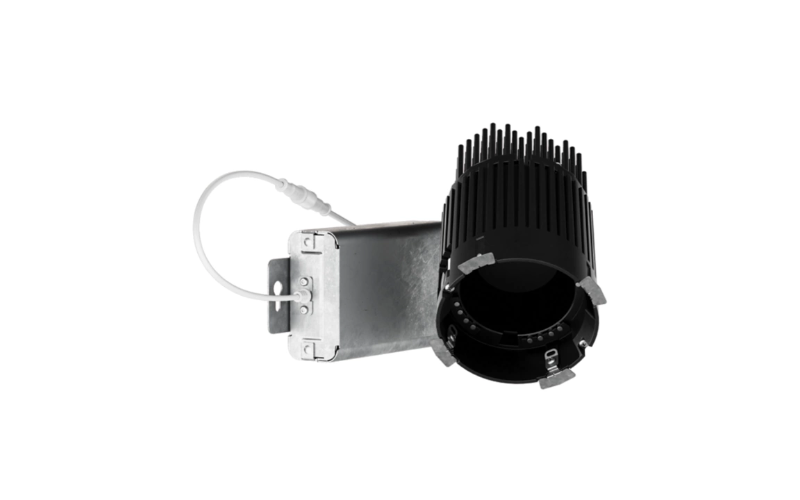

LDRT3D. 3'' Round Install From Below Downlight.
 Configure
 Add to project
Portfolio. LDRT3D. 3'' Round Install From Below Downlight.
Portfolio. LDRT3D. 3'' Round Install From Below Downlight.
Portfolio. LDRT3D. 3'' Round Install From Below Downlight.
Portfolio. LDRT3D. 3'' Round Install From Below Downlight.
RESOURCES
DESCRIPTION
  • Round downlight with integrated heat sink and remote LED driver junction box fits 2x6 construction
  • Wing clamps hold module securely in ceiling in new construction with optional mounting frame or remodel applications
  • Interchangeable precision optics in 8°, 12°, 10º-70° in 5° increments, and assymetric distributions
  • Unmatched trims and finishes for every space and style in standard flange or plaster knife edge rimless
  • 90, 97 or 98 CRI (2 SDCM), 6 Color Temperatures, Dim-to-Warm™, VividTune™ Tunable White, & BioUp™ Melanopic
  • Standard dimming down to 1%, ENERGY STAR® qualified; Integral or remote driver options
  • Lumens: 250 – 1,700
  • Declare® Certified: Contains no LBC Red List chemicals
  • Wavelinx and DLVP connected systems, 5-year warranty
  • Plaster lathing ring accessory offered for flush reflector transition
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.44"
    L: 3.44"
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
  • CRI
    90 97 98
  • Watt(Approx)
    4.2 W8.7 W13.5 W16.5 W23.3 W
  • Lumens(Approx)
    250 Lm500 Lm900 Lm1300 Lm1700 Lm
  • Optics
    DirectNarrowMediumFloodWide FloodAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMXDMX/RDM
  • Controls/Network
    BluetoothWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V347V
  • Integral Emergency
  • Lumen Maintenance
    55000 h
  • Certificates
    UL/CULT24*Energy Star*RoHSDeclareBAA
  • Environment
    DampIP65Healthcare General
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    New ConstructionIC
  • Housing Depth
    5.65 ''5.54 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
