Portfolio (Cooper Lighting Solutions)

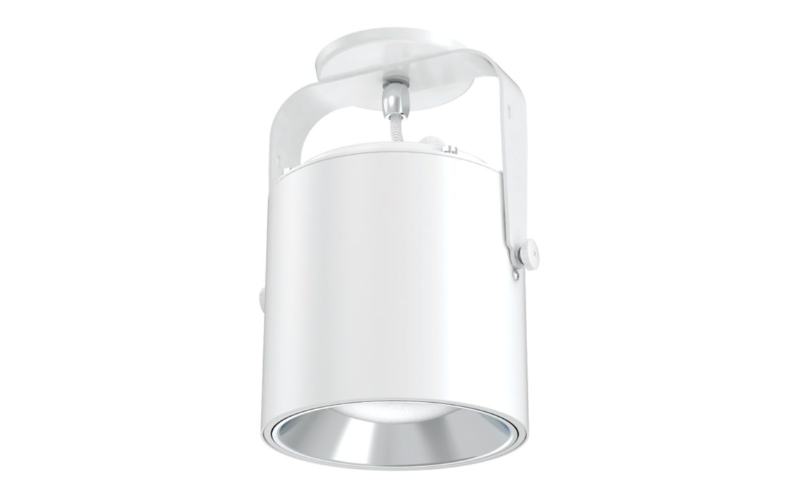

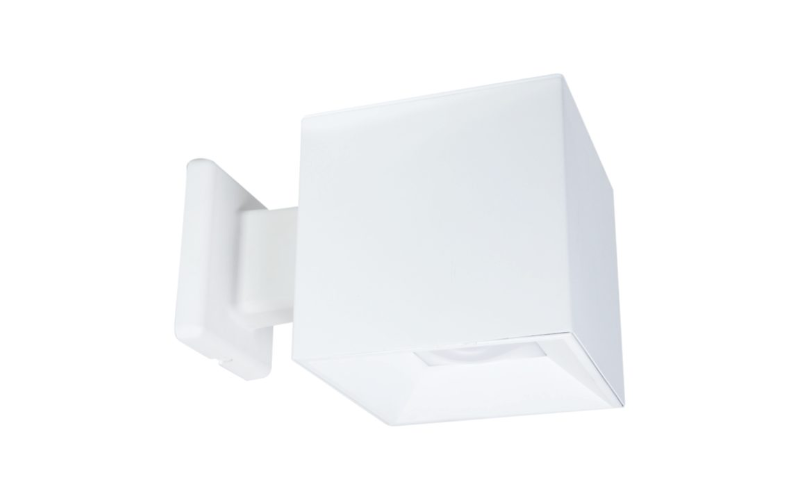

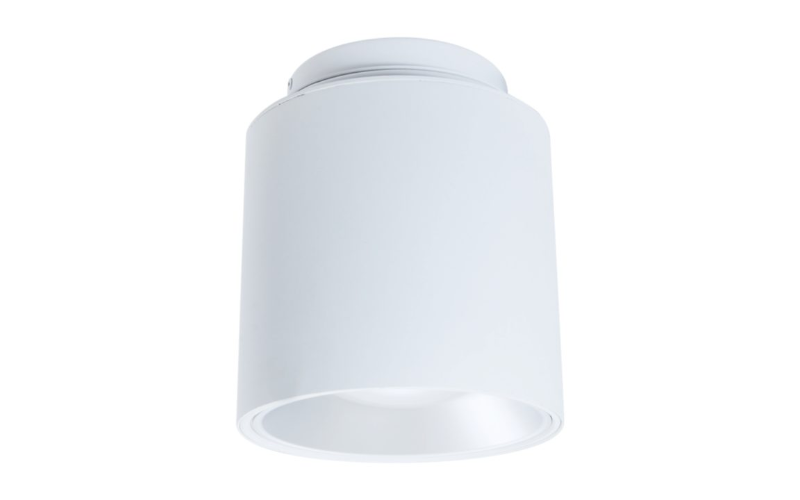

LERS6C/LESQS6C. Cylinders Full Spectrum 6'' Round and Square Shallow Cylinder Surface, Ceiling, Wall, Up/Down, Yoke, Stem and Air Craft Cable Mount 98CRI.
 Configure
 Add to project
DESCRIPTION
Designed to compliment any space, the 6" LED shallow round and square downlight cylinders, also available as a wall wash cylinder, can be wall-, ceiling- or pendant-mount or hung by aircraft cable. A two-stage system produces smooth distribution with excellent light control and low aperture brightness. The cylinders are available in multiple lumen packages, color temperatures and a variety of finishes. Standard 0-10V driver dims to 1% with a multitude of optional integral and remote drivers available.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 6 9/16"
    L: 6 9/16"
    H: 8 1/8"7 5/8"6.7"11 3/16"10 1/8"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K5000KFull Spectrum
  • CRI
    98
  • Watt(Approx)
    3.87 W7.78 W10.52 W10.43 W16.56 W22.63 W32.98 W32.57 W
  • Lumens(Approx)
    250 Lm500 Lm800 Lm1000 Lm1500 Lm2000 Lm2500 Lm3000 Lm
  • Optics
    DirectDirect/IndirectGeneral Diffused
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%0-10VLutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)Fifth Light DALIDMX/RDM
  • Controls/Network
    WaveLinx
  • Power/Voltage
    IntegralRemoteUNV 120-277V120V277V347V
  • Integral Emergency
  • Lumen Maintenance
    55000 h
  • Certificates
    UL/CULT24*Energy Star*RoHSBAA
  • Environment
    DampIP66
  • Mounting Type
    Ceiling SurfaceWall SurfaceYokeConduit Mount
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
