Peerless (Acuity Brands Lighting)

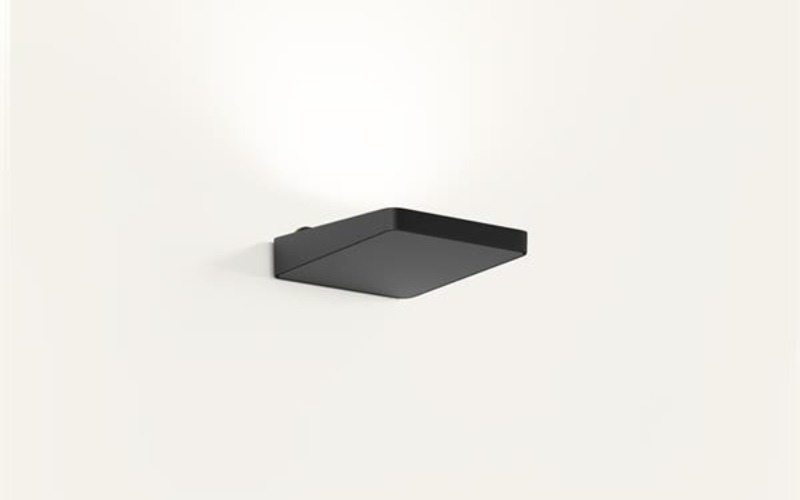

ANGLW. Angle Slim-profile Wall with Controlled Indirect Illumination.
Configure
Add to project
RESOURCES
DESCRIPTION
A sleek, compact wall mount family with high output indirect illumination for a range of high ceiling to small space applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14"L: 13"25"49"H: 4.11"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KTunable White
- CRI80 90
- Watt(Approx)46 W99 W111 W199 W194 W376 W
- Lumens(Approx)6430 Lm11929 Lm13356 Lm24777 Lm25404 Lm47508 Lm
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULBAA
- EnvironmentWetNatatorium
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
