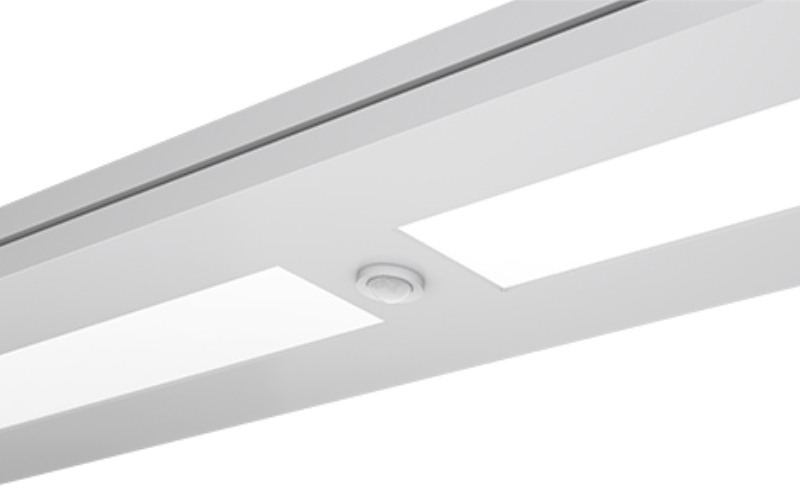

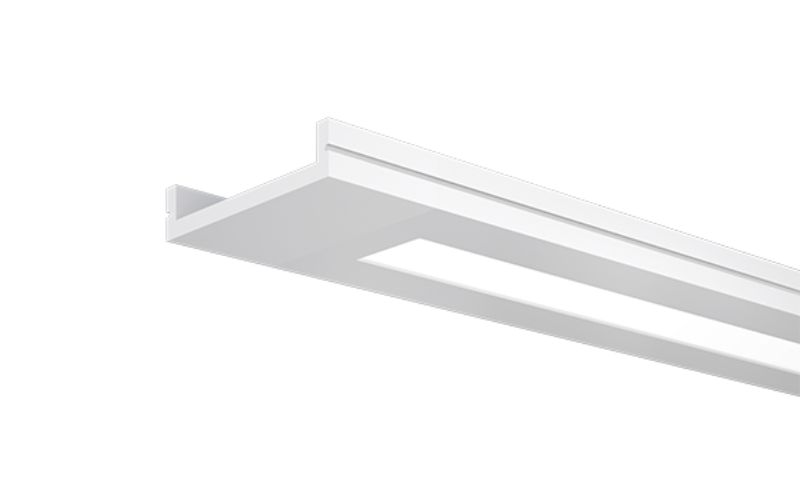

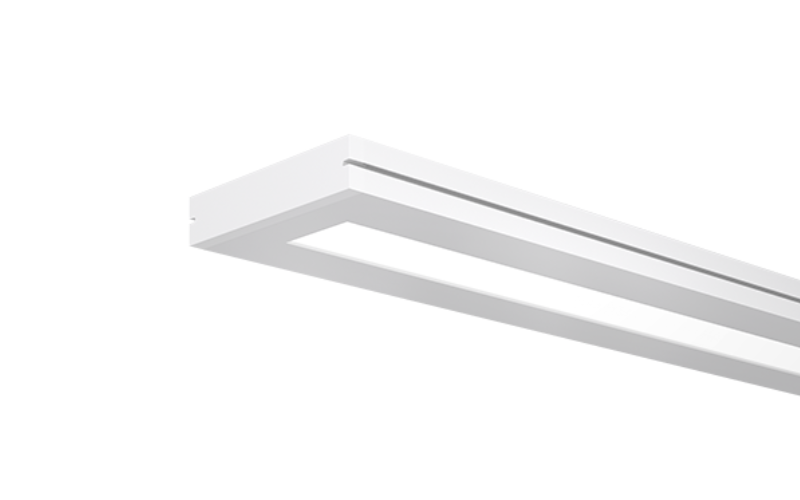

EGRM4L. Lightedge Rectangular Indirect/Direct Suspended LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The Lightedge LED rectangular indirect/direct luminaire is a vision of refined beauty and gracefully blends with the architectural elements of any room. With its signature feature, the double-edge body, this timeless luminaire offers elegant Indirect/Direct lighting with smooth and flicker-free deep dimming performance to dark provided by the eldoLED® driver. The Lightedge offers powerful options with integrated nLight® or nLight® AIR wireless controls.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.13"L: 4 Ft8 FtRun length (Ft)H: 1.7"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)7.6 W/Ft9.8 W/Ft10.1 W/Ft13.8 W/Ft12.3 W/Ft11.9 W/Ft14.4 W/Ft16 W/Ft18 W/Ft15.4 W/Ft17.8 W/Ft21.5 W/Ftcustom
- Lumens(Approx)300 Lm/Ft500 Lm/Ft700 Lm/Ft1000 Lm/Ft1300 Lm/Ft1200 Lm/Ft1500 Lm/Ft1400 Lm/Ft1600 Lm/Ft1800 Lm/Ft1700 Lm/Ft2000 Lm/Ft2300 Lm/Ftcustom
- OpticsDirectIndirect/DirectGeneral DiffusedBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron Hi-Lume 3-wire (L3D)
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
