LINO2PD. Lino 2'' Linear Pendant Pattern for Seamless Integration Indoors or Out.
Configure
Add to project
RESOURCES
DESCRIPTION

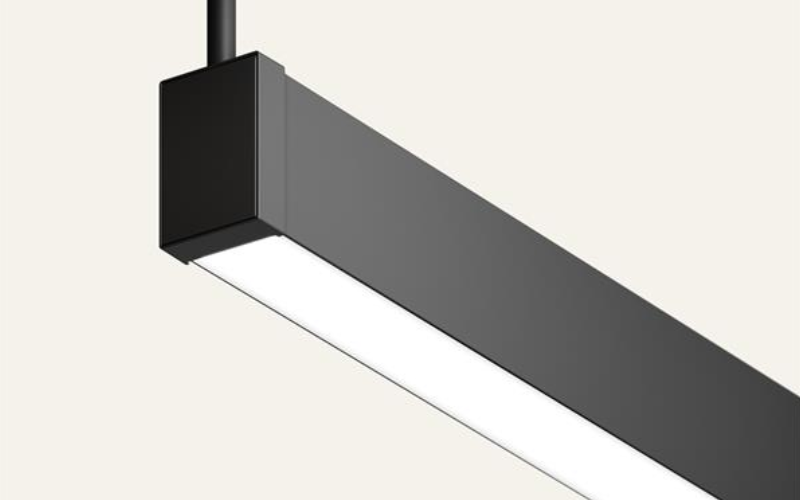

An IP66-rated luminaire in pendant stem or catenary mount. Sleek housing & no visible hardware. Can be combined to create patterns.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.16"L: Run length (Ft)H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft10 W/Ft12.5 W/Ft
- Lumens(Approx)535 Lm/Ft1029 Lm/Ft1263 Lm/Ft
- OpticsDirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to <1%0-10VDALIDMX
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULADABAA
- EnvironmentIP66Natatorium
- Mounting TypePendantCatenary
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLINO2PDMP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
