Peerless (Acuity Brands Lighting)
LINO3W. Lino 3'' Linear Wall Patterns, Seamless Integration Indoors & Out.
Configure
Add to project
RESOURCES
DESCRIPTION

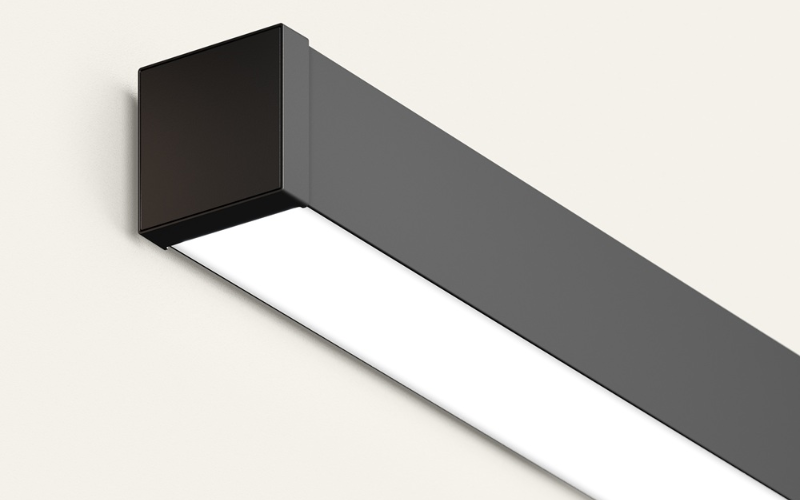

An IP66-rated luminaire in wall mount. Sleek housing & no visible hardware. Can be combined to create patterns.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.16”L: Run length (Ft)H: 3"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KTunable WhiteRGBW
- CRI80 90
- Watt(Approx)5 W/Ft10 W/Ft12.5 W/Ft
- Lumens(Approx)545 Lm/Ft1050 Lm/Ft1300 Lm/Ft
- OpticsDirectIndirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALIDMX
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULADABAA
- EnvironmentIP66Natatorium
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
