Peerless (Acuity Brands Lighting)
OPMW. Open LED Surface Direct Wall Wash.
Configure
Add to project
RESOURCES
DESCRIPTION
Achieving runs of continuous linear lighting has been an unanswered challenge until now. The OPEN family of lens-free luminaires uses innovative Seam Eraser technology to erase internal luminaire connections, resulting in continuous illumination for a true, unbroken line of light aesthetic.

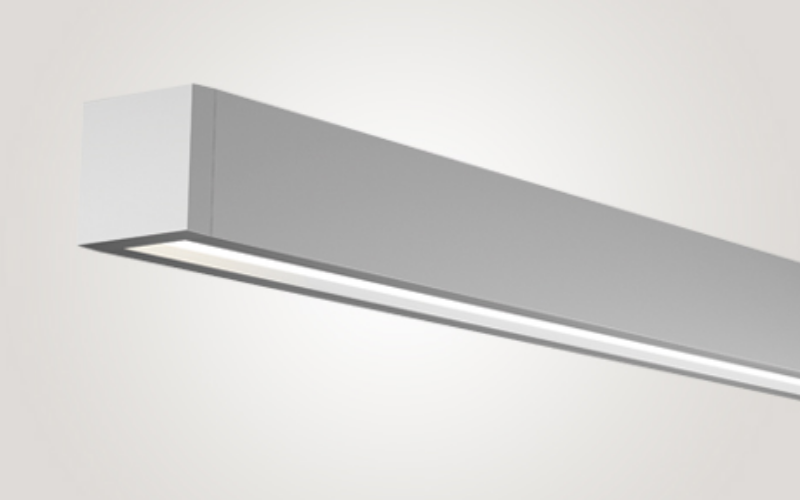

The Open direct wall wash suspended fixture is available in two distributions with flat and open endcaps. For greater savings and operational efficiency, Open is available with integrated daylight and/or occupancy sensors and can be networked with Acuity Controls nLight®.
The Open direct wall wash suspended fixture is available in two distributions with flat and open endcaps. For greater savings and operational efficiency, Open is available with integrated daylight and/or occupancy sensors and can be networked with Acuity Controls nLight®.
- 4', 6' and 8' sections
- White, Black or Painted Aluminum
- Up to 100 LM/W
- Flicker-free dimming to dark with eldoLED® driver
- Options up to 4000 Lumens
- 3000K, 3500K or 4000K CCT
- Choice of 80 or 90+ CRI option
- Healthcare facility cover option
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 5/8"L: 4 Ft6 Ft8 FtH: 3 5/8"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)5.1 W/Ft8.4 W/Ft
- Lumens(Approx)533 Lm/Ft780 Lm/Ft
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to <1%eldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSA
- EnvironmentDampHealthcare General
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeOPMW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
