Peerless (Acuity Brands Lighting)

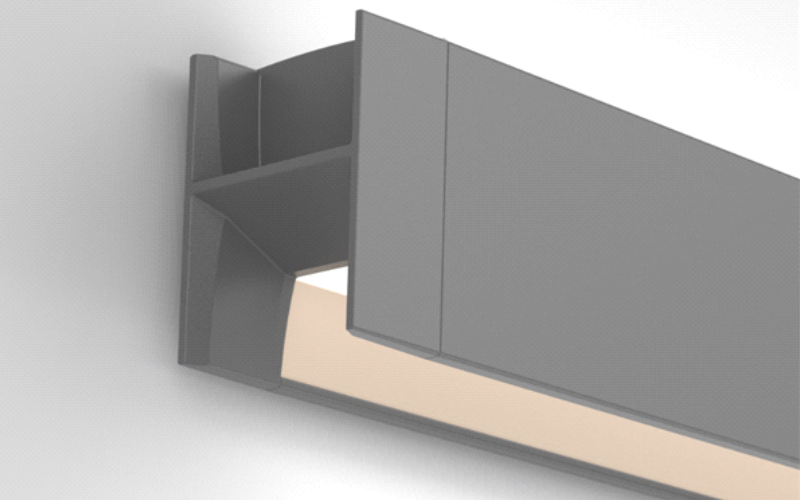

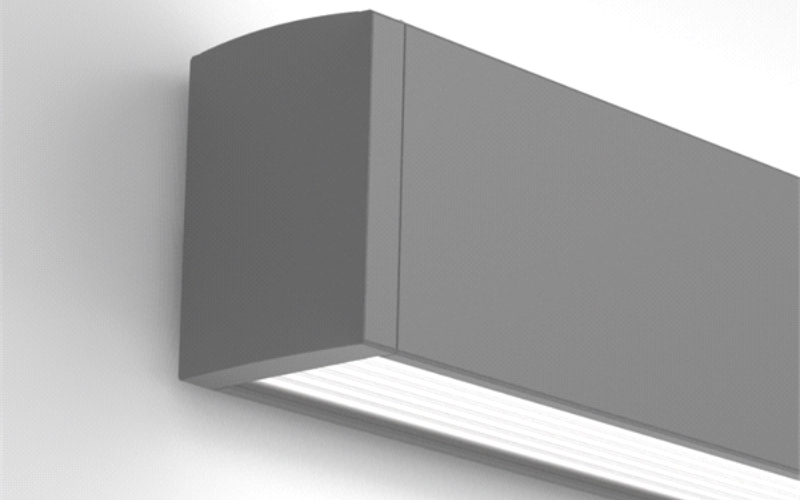

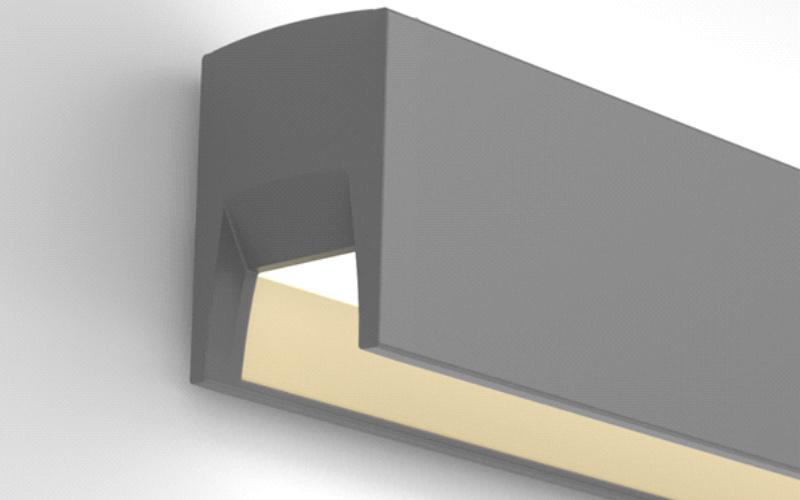

PRM4WID. 4'' Prim Wall Indirect Direct Tunable White.
Configure
Add to project




RESOURCES
DESCRIPTION
Prim strikes a balance between what a luminaire should do and how it should feel. Prim’s all-around seamless design is uninterrupted by complementing end caps and interchangeable trims that add to the continuity of a space, generating harmony across the entire lighting application.
Prim Wall features a seamless lens design, enabling runs up to 100ft with a 4” aperture. Featuring an asymmetric indirect distribution, tunable white, and a room side trim in highly reflective matte white, Prim Wall ensures maximum reflectance down the wall, while also preserving freedom of design choice with selectable wall side trim.
Prim Wall features a seamless lens design, enabling runs up to 100ft with a 4” aperture. Featuring an asymmetric indirect distribution, tunable white, and a room side trim in highly reflective matte white, Prim Wall ensures maximum reflectance down the wall, while also preserving freedom of design choice with selectable wall side trim.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/8"L: Run length (Ft)H: 5 1/2"
- Light SourceLED
- CCT/ColorTunable White
- CRI80 90
- Watt(Approx)
- Lumens(Approx)200 Lm/Ft300 Lm/Ft500 Lm/Ft600 Lm/Ft700 Lm/Ft900 Lm/Ft1000 Lm/Ft1400 Lm/Ft
- OpticsIndirect/DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULChicago Approved
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePRM4WID-TW
—
