Peerless (Acuity Brands Lighting)

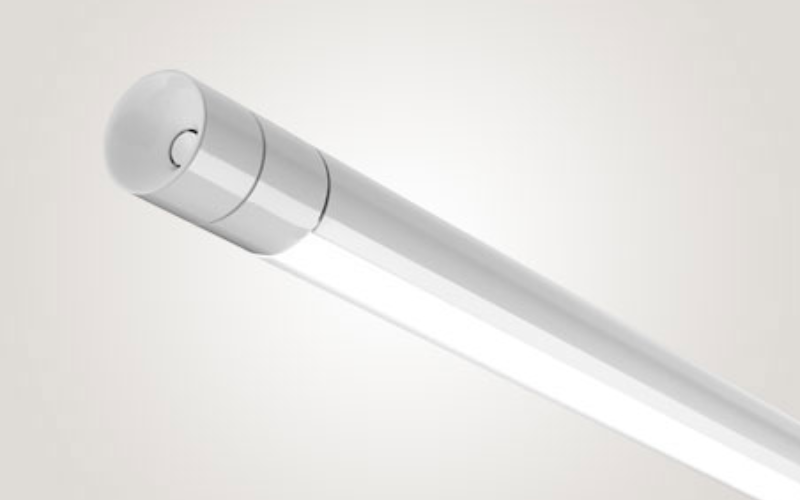

RD4M1. Round 4 LED Suspended Indirect.
Configure
Add to project
RESOURCES
DESCRIPTION
Round 4 Indirect is specifiable with high and low lumen packages that make the luminaire well-suited for a variety of applications.
Round 4 Indirect can be specified as nLight®-enabled to provide network controls connectivity, energy-saving digital lumen management or both. It is also available with an integrated sensor for daylight dimming and occupancy detection control. And Round 4 Indirect can be configured with an “L” connector to provide seamless corner illumination.
Round 4 features eldoLED® drivers that dim to 1% with no flicker as part of a modular light engine that delivers 50,000 hours (12-15 years) of illumination to L80.
Round 4 Indirect can be specified as nLight®-enabled to provide network controls connectivity, energy-saving digital lumen management or both. It is also available with an integrated sensor for daylight dimming and occupancy detection control. And Round 4 Indirect can be configured with an “L” connector to provide seamless corner illumination.
Round 4 features eldoLED® drivers that dim to 1% with no flicker as part of a modular light engine that delivers 50,000 hours (12-15 years) of illumination to L80.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4"L: 4 Ft8 FtRun length (Ft)H: 4"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80
- Watt(Approx)5 W/Ft10.2 W/Ft
- Lumens(Approx)390 Lm/Ft750 Lm/Ft
- OpticsIndirectBatwing
- Adjustable
- DimmingDim to <1%eldoLED SOLO DALIeldoLED SOLO 0-10V
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRD4M1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
