Paramount Lighting

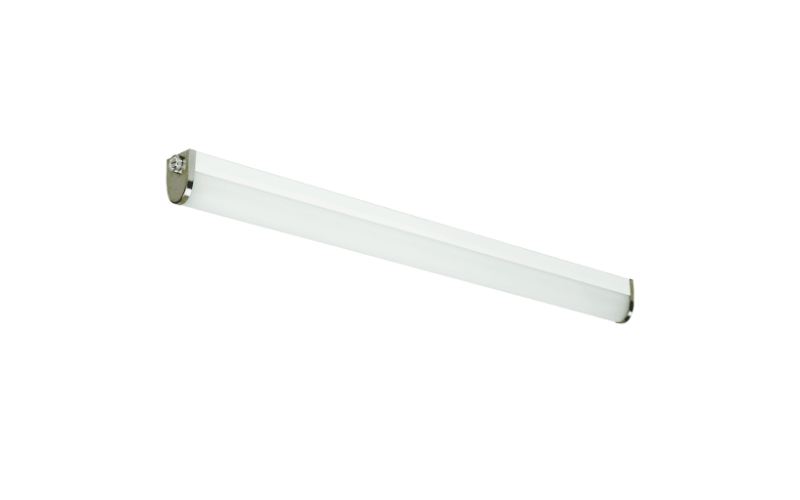

PMC2/PMSC2. C2 Series Craft Lite, Surface Mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
- High Light Output: each array 1200 lumens
- Rounded or Square Lens Options
- Tested to LM79, LM80
- L70 is >54,000 hours
- Square version available
- Available in Stainless Steel construction
- Premium Driver with Dimming standard
- IK10 Impact resistance rating
- Every luminaire tested to assure customer satisfaction
- 5 year limited warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 15 5/16"26 5/16"37 3/8"48 3/8"59 3/8"70 3/8"81 7/16"92 7/16"H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI83 90
- Watt(Approx)9 W19 W28 W35 W43 W53 W63 W70 W
- Lumens(Approx)1200 Lm2300 Lm3500 Lm4700 Lm5900 Lm7000 Lm8200 Lm9300 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLMade in USANSF
- EnvironmentAntimicrobial FinishDampWetHazardousFood ProcessingCorrosion Resistant
- Mounting TypePendantSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeC2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
