Paramount Lighting

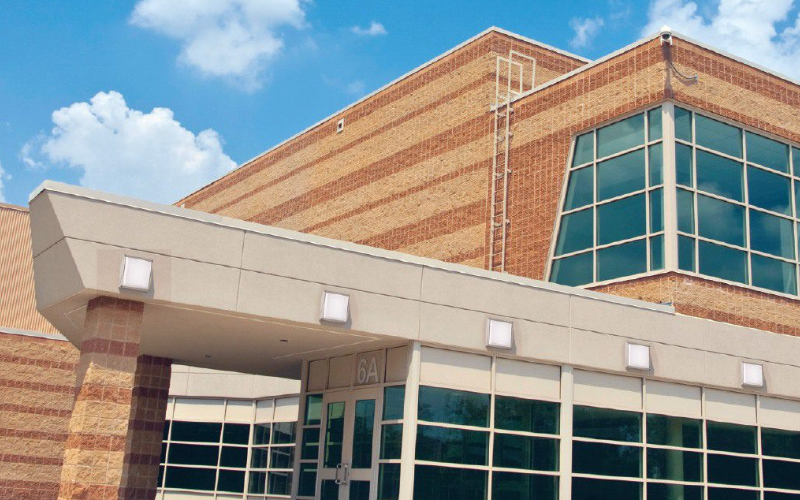

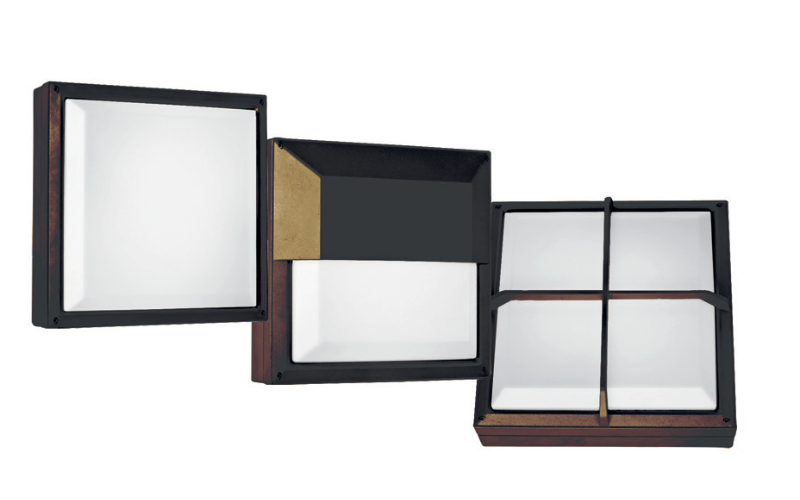

PMVR14SO/PMVR14SH/PMVR14SX. 14″ Square Series Vandal Resistant, Surface Mount.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
- Long service life
- Vandal resistant construction and materials
- IK10 Impact rating
- 3.0G Vibration Test rating
- IP66 Ingress protection
- 10-Year limited warranty
- Lifetime Vandal Resistance Warranty
- 0-10V, 1% Dimming
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 14.17"L: 4.5"4.75"5.2"H: 14.17"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI85 93
- Watt(Approx)13 W14 W19 W20 W29 W30 W32 W45 W48 W59 W
- Lumens(Approx)1100 Lm1150 Lm1600 Lm1700 Lm2550 Lm2570 Lm3800 Lm3400 Lm5000 Lm5100 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLMade in USA
- EnvironmentIP66Vandalproof
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVR14S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
